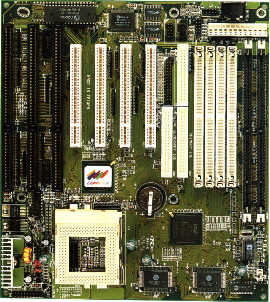

Pentium Mainboard

TX 430II

CPU

Intel I430TX PCIset support

Pentium P54C up to 200MHz processors

Supports Pentium P55C up to 233MHz processors

Supports Cyrix 6x86, 6x86L, M2, AMD K5, K6 processors

Architecture

4 PCI Local Bus slots and 3 x 16 bit ISA Bus slots

PCI Bus bandwidth up to 100MB/S

PCI 2.1 Compliant

Cache Memory

512K pipeline burst SRAM on board

System Memory

168-pin DIMM x 2 support SDRAM or EDO/FPM (Fast Page Mode) DRAM

72-pin SIMM module x 4 support EDO/FPM DRAMs

Auto banking in multiple configuration up to 256MB

DIMM voltage select (3.3V)

Others

Supports High Efficiency Switching power supply

Voltage range 2.0V to 3.5V supports all kinds of CPU

Supports auto stop CPU FAN in suspend mode

Supports auto slow down CPU when over temperature (optional)

I/O SPEC

2 PCI IDE interface on board support ATA spec. up to mode 4 and bus master mode and Ultra DMA 33MB/sec.

Supports two 16550 compatible enhanced serial port

High performance EPP/ECP parallel port function

Floppy disk interface

Supports the Universal Serial Bus (U.S.B) x 2

Ir Jumper (Optional)

Supports LS-120 Floppy Disk Drive.

Supports PS/2 Mouse Connector

System BIOS

Supports Green Feature, Plug and Play Flash ROM

BIOS supports IDE CD-ROM and SCSI HD boot-up
