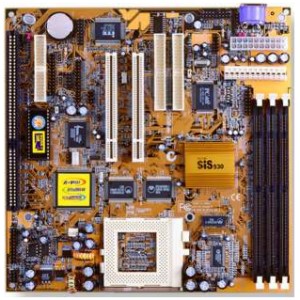

| PC598 SiS Skt7 100MHz 3Dm Sound/VGA/V90/LAN AT |

|
|
| Chipset | SIS-530 |
| BIOS | AMI |
| Cache | 64-bit 1MB |
| Form | AT & ATX |
| CPU | Supports 90-500MHz in
Socket 7 Intel Pentium Cyrix/IBM 6x86L/6x86MX/MII AMDK6/K6-2 IDT C6 CPUs BUS Frequency at 60/66/75/83/95/100MHz CPU Plug and Play feature |
| Speeds | 90-500MHz |
| BUS | BUS Frequency at 60/66/75/83/95/100MHz |
| RAM | 3xDIMM (3.3V SDRAM) Maximum 768MB ECC Support |
| AGP | No slot, AGP graphics is built in |
| PCI | 2 |
| ISA | 1 |
| Onboard I/O | Floppy port with 1MB/s
transferring rate Fast serial port Parallel port with EPP and ECP |
| Onboard Sound | Windows 3.1/95/98 and
Windows NT4.0 HRTF 3D Positional Audio Direct Sound 3D & A3D interfaces MPU-401 Game/Midi port Legacy Audio SB16 Software Wave-table Synthesizer Full Duplex 16-bit CODEC with filters |
| Onboard VGA | Shared VGA configurable
up to 8MB SiS 530 Chipset |
| Board Dimensions | 225 x 220mm |
| Gross Weight | 0.76kg |
| Gross Dimensions | 255 x 260 x 48mm |
| Notes | Although the board has 'Jumperless' CPU setup, there's still one jumper to change first, and that's the one for the CMOS. To save battery life before use, it's set to 'Clear', so you'll have to set it to 'normal' before you power up, or the board can appear dead. If you're setting up a new Windows system, disable as many onboard features as you can until Windows has finished setting up. Then enable/install one device at a time so all the drivers can be installed in an orderly fashion, and any conflicts isolated before you have to many devices to sort out. Look out when using 100MHz based CPUs on this board, there is no provision for 66MHz RAM unless you are using a 66MHz based CPU. |
| Incompatibilities | Fujitsu/Samsung
hard drives. Intermittent data loss or corruption possible.
Xwing Keyboards. Sometimes not detected at power-on.
Brooktree chipset based TV-Tuners. Hangin' anna Crashin' The built-in HSP modem may not function with all ISP's. (AOL for instance) |
