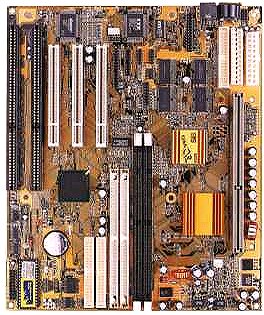

| M717 P2 LX AT 3Dsnd 8MB VGA AT Motherboard |

|
|
| Chipset | Intel LX |
| BIOS | AMI |
| Form | AT |
| CPU | Pentium II Celeron Slot 1 processors |
| Speeds | Pentium II 233~333MHz Celeron 266~300MHz Slot 1 processors |
| BUS | 66MHz |
| RAM | 2x DIMMs SDRAM 2x SIMMs EDO, FPM Supporting up to 256MB |
| AGP | Built in high performance 64 bit 3D AGP Graphics Accelerator |
| PCI | 2 + 1 shared with ISA |
| ISA | 1 + 1 shared with PCI |
| Onboard I/O | 2 x IDE (UDMA 33) FDD Parallel (EPP, ECP) 2 x Serial AT Keyboard Game/MIDI port Line In Line Out Microphone In |
| Onboard Sound | Onboard 3D Sound Pro meet PC98' SPEC and supports HRTF Positional Audio, Direct Sound 3D,Provide drivers for 3D Games that use Aureal software interface , Software Wave-table Synthesizer |
| Onboard VGA | Built in high performance 64 bit 3D AGP Graphics Accelerator with 4MB/8MB frame buffer |
| Gross Weight | 0.58kg |
| Gross Dimensions | 225 x 260 x 30mm |
| Incompatibilities | Fujitsu/Samsung
hard drives. Intermittent data loss or corruption possible.
Xwing Keyboards. Sometimes not detected at power-on.
Brooktree chipset based TV-Tuners. Hangin' anna Crashin' |
