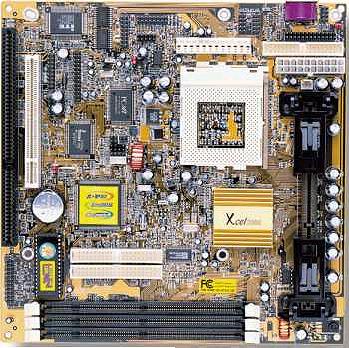

| PC748 SiS Sk370/Slt1 100MHz 3Dm Sound/VGA/V90/LAN AT |

|
|
| Chipset | Xcel 2000 |
| BIOS | 2MB Flash Rom on board,
provides complete Advances Configuration Power Interface (ACPI)
and Legacy PMU and the Ultra DMA 33/66, fully compliant to C'97
and PC'98 Spec. Built-in Hardware Monitor circuit supports thermal, Power and Fan speed monitor. Bundled AMI Desktop Client Manager for detecting abnormal condition and thermal automatically or management through the network link. |
| Cache | - |
| Form | AT & ATX Support |
| CPU | Slot 1 and Socket 370
for flexible CPU selection. Supports Pentium III 450~550MHz ,Pentium II 233~450MHz and Celeron 266~466MHz CPUs with frequency at 66/75/83/100MHz in Slot 1/Socket 370 for Baby AT Form Factor. |
| Speeds | 233-550MHz |
| BUS | 66-100MHz |
| RAM | 3 DIMMs for SDRAM, expandable to 768MB |
| AGP | No slot, AGP graphics is built in |
| PCI | 1 x PCI |
| ISA | 1 x ISA |
| Onboard I/O | Floppy disk drive port
with 1MB/s transfer rate One serial port with 16550-compatible fast UART One parallel port with support for ECP and EPP |
| Onboard Sound | 3D PCI Sound Pro on
board meet PC98' Spec. HRTF Positional Audio, supports Microsoft's Direct Sound 3D Aureal's A3D interface Software Wave-table Synthesizer |
| Onboard VGA | High performance 64 bit 3D AGP Graphics Accelerator with 8MB frame buffer embedded in North bridge; supports Windows 98 Multiple Display feature; AGP Rev. 2.0 Spec. Compliant |
| Onboard Modem | 56K Fax/Modem on board, supports V9.0 Fax/Modem standard for your internet communication. |
| Onboard NIC | 10/100Mbps Fast Ethernet LAN on board, supports IEEE 802.3 and 802.3u standards, and fully compliant ANSI X3.263 TP-PMD physical sub-layer. |
| Board Dimensions | 224 x 224mm |
| Gross Weight | 0.75KG |
| Gross Dimensions | 245mm x 250mm |
| Incompatibilities | Fujitsu/Samsung
Hard Drives - Intermittent data corruption, Win9x registry
errors.
The built-in HSP modem may not function with all ISP's. (AOL for instance) |
