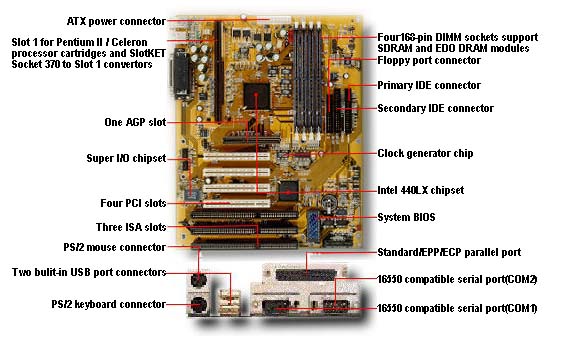

[ LX6 Pentium®II AGP Based ATX Mainboard With CPU SOFT MENUTM II Technology ]
Based on Intel's
440LX chipset, the LX6 is uniquely designed
for file servers, workstations and high-end professional users. It includes
all of the required specifications for PC97 such as Ultra
DMA/33 IDE interface and ACPI power
management functions as well as 133 MHz AGP spec. Four
168-pin DIMM sockets support Synchronous
and EDO DRAM. The LX6 also implements Soft MenuTM,
leading technology that eliminates all jumpers on the mainboard that set
CPU parameters allowing end-users to easily and correctly install or upgrade
their own Pentium® II processor with MMXTM.
[
Specifications ]
CPU
1. Employs
switching type regulator to stabilize CPU
operation
2. Supports 66,75* and 83* MHz CPU external
clock speeds
3. Supports Pentium® II 233~333MHz processor card
4. Supports Celeron® 266~333MHz processor cartridge (Based
on 66MHz clock)
Chipset
1. Intel 440LX
chipset (82443LX and 82371AB)
2. Supports Ultra DMA/33 IDE protocol
3. Supports Advanced Configuration and Power Management Interface (ACPI)
4. Supports AGP 66MHz/133MHz (Sideband)
3.3V device
Memory
1.
Four 168-pin DIMM
sockets for 3.3V unbuffered DRAM modules
2. DIMM sockets support SDRAM, EDO DRAM
3. Supports up to 512MB (EDO DRAM up to 1GB)
4. ECC support
System BIOS
1.CPU Soft
MenuTM eliminates the need for jumpers or DIP switches
to set CPU parameters
2. Award Plug and Play BIOS supports APM,
DMI and ACPI
3. Write-protect Anti-Virus function by AWARD BIOS
4. Year 2000 compliant
Functions
1.One floppy
port connector supporting up to 2.88MB floppy drive and 3 mode floppy
drive
2. Ultra DMA/33 bus master IDE supports up to four IDE devices (including
LS-120MB floppy drive)
3. Built-in Standard/EPP/ECP parallel port
connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 mouse and keyboard ports connectors
6. Built-in standard IrDA TX/RX header
7. Two built-in USB connectors
Miscellaneous
1. ATX
form factor
2. One AGP slot, four
PCI slots and three ISA slots
3.
PC97 compliant
4. Dimensions : 305*245mm
