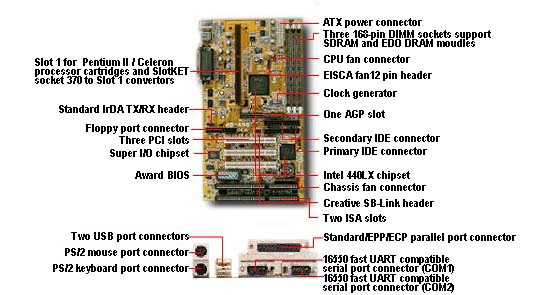

[ AH6 PentiumŪ II AGP Based ATX Mainboard With CPU SOFT MENUTM II Technology ]
ABIT AH6 based on
Intel's 440LX chipset, with its compact design
, it is especially suitable for enterprise businesses, small offices and
power users. It includes all of the required specifications for PC97
such as Ultra DMA/33 interface and ACPI
power management functions as well as AGP spec Rev.
1.0. AGP support can give you the powerful 3D graphics performance
and lower cost. Three DIMM sockets can provide enough main memory size
for business computing, 3D gaming, multimedia environment and CAD/CAM
applications. AH6 also implements SOFT MENUTM,
leading technology that eliminates all jumpers on the mainboard that set
CPU parameters, allowing end-users to easily and correctly install or
upgrade their own Pentium® II processor with MMXTM
technology. Enjoy the world of the Pentium II.
[
Specifications ]
CPU
1.Supports
66,75* and 83* MHz CPU external clock speeds
2. Supports Pentium® II 233~333MHz processor cartridge
3. Supports Celeron® 266~333MHz processor
cartridge (Based on 66MHz clock)
Chipset
1.Intel
440LX chipset (82443LX and 82371AB)
2. Supports Ultra DMA/33M IDE protocol
3. Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports
AGP 66MHz/133MHz (Sideband) 3.3V device
Memory
1.Three
168-pin DIMM
sockets for 3.3V un-buffered DRAM modules
2. DIMM sockets support SDRAM and EDO DRAM
modules
3. Supports up to 384MB MAX.
(8,16,32,64,128MB EDO or SDRAM)
4. ECC support
Cache
Memory
1. Level
1 and Level 2 cache built into Intel Pentium II processor cartridge
System BIOS
1. CPU
Soft Menu - eliminates the need for jumpers or DIP switches to set CPU
parameters
2. Award Plug and Play BIOS supports APM,
DMI and ACPI
3. Write-protect Anti-Virus function by AWARD BIOS
4. Year 2000 compliant
Functions
1. One floppy
port connector supporting up to 2.88MB floppy drive, 3 mode floppy drive
2. Two channels of bus master IDE ports connectors for up to four IDE
devices (including LS-120MB floppy drive)
3. One built-in Standard/EPP/ECP parallel
port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 mouse and keyboard ports connectors
6. Built-in standard IrDA TX/RX header and SB-LinkTM header
7. Two built-in USB ports connectors
Miscellaneous
1.ATX
form factor
2.One AGP slot, three
PCI slots and two ISA slots
3.Dimensions : 305*170mm
