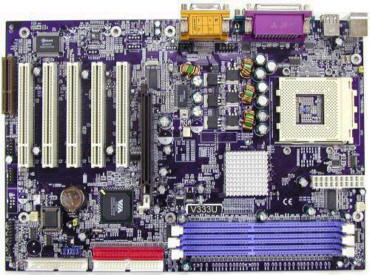

V333U

[LOOKING FOR DRIVERS - CLICK HERE]


Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate
VIA Apollo KT333 System controller and VT82335 High Bandwidth Vlink Client South Bridge
Support ATA 133
Support USB 2.0
Extend AGP Slot Support 4X AGP
Support 2.5V DDR200/DDR266/DDR333 DDR SDRAM
PC'99 Ready & PC'99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
JumperLess
Frequency Magic Setting
PC Health Monitoring On Post Screen
Magic Install
CPU Vcore Voltage minor adjustment
CPU ratio adjust by jumper setting
DDR DRAM Voltage2.5/2.6/2.7/2.8V ,System 3.3V,AGP 1.5V/1.6V Voltage Minor adjustable in bios
CPU overheat shut down protect function
3-Phase Vcore Voltage to increase system stability
BIOS Write Protect function to avoid Virus crash data
BIOS Auto Detect CPU voltage
Y2K Compliant
ACPI Supporting For OS Directed Power Management

  1. Modem Ring remote wake up
  2. RTC alarm wake up
  3. Wake on LAN For OS
  4. Support software suspend & power off
  5. Support Power Button Ride (Instant off or Delay 4 second power off
SPECIFICATION
Processor
  • Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate
Chipset
  • VIA Apollo KT333 System controller and VT8225 High Bandwidth Vlink Client South Bridge
CPU Bus Frequency
  • CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 200MHz in BIOS Setup (Frequency Magic Setting)
Jumpless
  • Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency
Expansion Slot
  • Five 32-bit PCI Bus Master slots
  • One CNR (Communication Network Raiser) Slot
System Memory
  • 3 x 184-pin DDR Module Socket support DDR200/DDR266/DDR333 DDR SDRAM up to 3.0GB System memory.
On Board IDE
  • Support 2 X IDE Connectors for up to 4 IDE Drives
  • Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s
  • Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up to 133M Bytes/s
  • Support LS-120 / ZIP Device
AGP SLOT
  • Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling
  • Pipelined split transaction long-burst transfers up to 1GB/sec
  • 1.5V AGP Card Only
On Board 3D Audio
  • Software Audio Controller With On Board CODEC Complete to AC97'
  • Support 3D Surround
  • Support 3D Positioning
  • Full Duplex Operation For Simultaneous Record And Playback
  • Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack
On Board Ultra I/O
  • 2 X Serial Ports (16550 Fast UART Compatible)
  • 1 X Parallel Port (EPP and ECP capabilities)
  • 1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
  • 1 X PS2 Mouse Connector
  • 1 X Keybord Cnnector
  • 2 X Three Wire FAN Connector (Include CPU FAN)
  • 1 X LINE IN / LINE OUT / Microphone Connector
  • 1 X Game Port Connector (Support Two Joysticks)
  • 2 X Analog Audio CD Music line Connectors (different connector)
  • 1 X Consumer IR Connector
  • 1 X Standard IR Connector (Infrared)
Winbond Hareware Doctor
  • Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer
  • Driver For Win95/98
On Board USB
  • 6 X USB 2.0 Ports Connector
  • Support USB Keyboard & USB Mouse
Power Saving
  • ACPI/APM Power Management
  • Modem Ring remote wake up
  • RTC Alarm Wake up
  • Support Software Suspend & Power off
  • Wake on LAN For OS
  • Support Power Button Ride (Instant off or Delay 4 second power off)


Power Supply
  • Support 20-pin ATX power supply (ATX-PW)
BIOS
  • Award BIOS , Support Green function, Plug and Play Function
  • 2MBit Flash ROM
Dimension
  • ATX Form Factor with 30.5cm X 21cm
