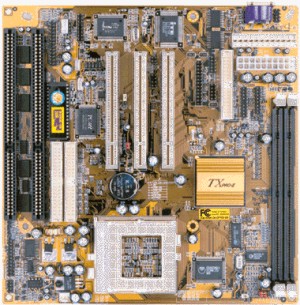

| PC571 LMR Skt7 Sound/VGA/V90/LAN AT |

|
|
| Chipset | TX PRO-II |
| BIOS | AMI |
| Cache | 512K |
| Form | AT |
| CPU | Supports All in Socket 7
at 60/66/75 MHz Intel Pentium Cyrix/IBM 6x86L/6x86MX/MII AMDK6/K6-2 IDT C6 CPUs WinChip 2/2a CPUs BUS Frequency at 60/66/75 MHz Jumperless CPU Setup NOTE: Does not support a BUS frequency of 100MHz |
| Speeds | Maximum Speed 333MHz |
| BUS | 60, 75, 83MHz |
| RAM | 2 x DIMM (3.3v SDRAM) |
| AGP | No |
| PCI | 3 |
| ISA | 2 |
| Onboard I/O | Floppy port with 1MB/s
transferring rate Serial port Parallel port with EPP and ECP PIO, Bus Master and Ultra DMA/33 operation modes |
| Onboard Sound | Windows 3.1/95/98 and
Windows NT4.0 HRTF 3D Positional Audio Direct Sound 3D & A3D interfaces MPU-401 Game/Midi port Legacy Audio SB16 Software Wave-table Synthesizer Full Duplex 16-bit CODEC with filters |
| Onboard VGA | 64-bit 3D accelerator Max 4MB from system RAM High resolution up to 1024 x 768 |
| Onboard Modem | 56Kbps Fax/Modem DAA
module Supports V.90, V.34, V.32bis, V.32, V.22bis, V.22 Supports Auto Fallback and MNP5, V.42bis data compression with 115200 compatible Virtual UART Requires 16mb RAM and Win 95/98/NT |
| Onboard NIC | Onboard
10BaseT/100BaseTX LAN Adapter LAN controller integrates Fast Ethernet MAC and PHY compliant with IEEE802.3U 100Base-TX, 10Base-T and ANSI X3T12 TP-PMD standards Compliant with ACPI 1.0 and the Network Device Class Power Management 1.0 High Performance provided bt 100 Mbps clock generator and data recovery circuit for 100 Mbps receiver. |
| Board Dimensions | Baby AT Form Factor |
| Features | Just about everything but the kitchen sink is already built in! |
| Gross Weight | 0.6kg |
| Gross Dimensions | 225mm x 225mm x 40mm |
| Notes | Fujitsu
Hard Drives - Various timing problems often cause Registry and
data corruption.
The built-in HSP modem may not function with all ISP's. (AOL for instance) |
