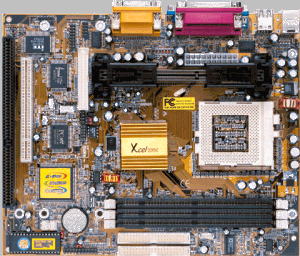

| PC741 Skt370/Slot1 VGA/V90/Sound/LAN ATX Motherboard |

|
|
| Chipset | Xcel2000 |
| BIOS | 2MB Flash Rom on board,
provides complete Advances Configuration Power Interface (ACPI)
and Legacy PMU and the Ultra DMA 33/66, fully compliant to C'97
and PC'98 Spec. Built-in Hardware Monitor circuit supports thermal, Power and Fan speed monitor. Bundled AMI Desktop Client Manager for detecting abnormal condition and thermal automatically or management through the network link. |
| Cache | - |
| Form | ATX |
| CPU | Slot 1 and Socket 370 for flexible CPU selection. Supports Pentium III 450~550MHz ,Pentium II 233~450MHz and Celeron 266~466MHz CPUs with frequency at 66/75/83/100MHz in Slot 1/Socket 370 for Baby AT Form Factor. |
| Speeds | 100MHz |
| BUS | 66/75/83/100MHz |
| RAM | 3 DIMMs for SDRAM, expandable to 768MB |
| AGP | No slot, AGP graphics is built in. |
| PCI | 1 |
| ISA | 1 |
| Onboard I/O | Floppy port with 1MB/s
transferring rate Serial port Parallel port with EPP and ECP PIO, Bus Master and Ultra DMA/33 operation modes |
| Onboard Sound | 3D PCI Sound Pro on
board meet PC98' Spec. HRTF Positional Audio, supports Microsoft's Direct Sound 3D Aureal's A3D interface Software Wave-table Synthesizer |
| Onboard VGA | High performance 64 bit 3D AGP Graphics Accelerator with 8MB frame buffer embedded in North bridge; supports Windows 98 Multiple Display feature; AGP Rev. 2.0 Spec. Compliant |
| Onboard Modem | 56K Fax/Modem on board, supports V90 Fax/Modem standard for your internet communication |
| Onboard NIC | 10/100Mbps Fast Ethernet LAN on board, supports IEEE 802.3 and 802.3u standards, and fully compliant ANSI X3.263 TP-PMD physical sub-layer |
| Board Dimensions | 235 x 225mm |
| Features | Provides ATX power
connector, supports various features of ATX power, such as
Suspend / Shutdown, Alarm Wake-Up ,Modem Ring On, Wake on LAN,
Interrupt Wake-Up from Keyboard/Mouse and Keyboard Power On/Off Supports PC99 Colour Connector for easy identification of peripheral devices. Provides ATX Form card connector for USB, PS2 Mouse and fast IR interface (optional) Provides Trend Micro's ChipAway Virus and PC-Cillin 98(OEM) for Windows 95/98 and internet virus protection. |
| Gross Weight | 0.65kg |
| Gross Dimensions | 245 x 245 x 45mm |
| Incompatibilities | Fujitsu/Samsung
Hard Drives - Intermittent data corruption, Win9x registry
errors.
The built-in HSP modem may not function with all ISP's. (AOL for instance) |
