[ LM6 Pentium®II AGP Based ATX Mainboard With CPU SOFT MENUTM II Technology ]

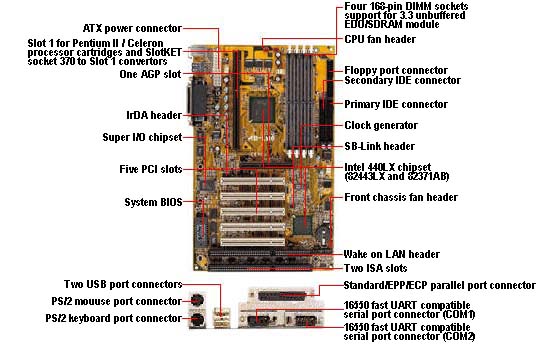

ABIT's LM6 is a full-spec
Intel 440LX based motherboard similar to our famous LX6 motherboard, but
with a few added features. The LM6 includes five PCI slots to meet the needs the SOHO and PC game
users. This is in addition to One AGP and
Two ISA slots. The LM6 comes with
Four DIMM sockets providing enough main memory capacity for business
computing, 3D gaming, multimedia and CAD/CAM applications. In the BIOS
of the LM6, there is the added protection for
write-protect anti-virus by AWARD BIOS. Also there is the new Soft
MenuTM II which allows for worry-free jumperless upgrades
and easy tweaking of your CPU parameters. The LM6 further comes with all
the advanced features in use now such as Ultra DMA/33, infrared support, SB-LinkTM
header and USB and PS/2 connectors. Further you have our guarantee that
the LM6 motherboard is Year 2000 safe and
compliant.
[
Specifications ]
CPU
1.Employs switching type regulator to stabilize
CPU operation.
2. Supports Pentium®II 233~333MHz processors cartridge.
3. Supports Celeron® 266~333MHz processor cartridge (Based
on 66MHz clock)
Chipset
1.Intel440LX chipset (82443LX and
82371AB)
2.Supports Ultra DMA/33 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports AGP 66/133 MHz (Sideband) 3.3V
device
Memory
1.Four 168-pin DIMM sockets for 3.3V
unbuffered DRAM modules.
2.DIMM sockets support SDRAM, EDO DRAM.
3.Supports up to 512MB max (8, 16, 32, 64,
128MB EDO or SDRAM).
4. ECC
support.
Cache
Memory
1.Level
1 and Level 2 cache built into Intel Pentium II processor cartridge
System
BIOS
1.CPU SOFT
MENUTM II eliminates the need for jumpers or DIP switches
needed to set CPU parameters
2.Award Plug and Play BIOS supports APM, DMI,
ACPI
3. BIOS setup supports 66,75* and
83* MHz CPU external clock speeds
4. Write-protect Anti-Virus function by AWARD BIOS
5. Year
2000 compliant
Multi
I/O Functions
1.One Floppy
port connector supporting up to 2.88MB floppy drive and 3 mode floppy
drive
2.Two channels of bus master IDE ports connectors for up to four IDE devices
(including LS-120MB floppy drive)
3.One built-in Standard/EPP/ECP parallel port
connector
4.Two built-in 16550 fast UART compatible serial ports connectors
5.Built-in PS/2 keyboard and PS/2 mouse ports connectors
6.Built-in standard IrDA TX/RX header
7.Dimensions : 305*190mm
