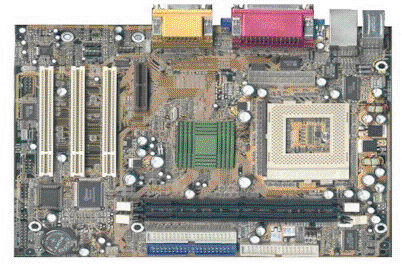

| SPECIFICATION |
| Processor |
- Socket 370 processor for Intel PentiumÒ
III Coppermine TM (FCPGA) , Celeron TM (FCPGA,
PPGA) Processor, optimised for 133MHz Front Side Bus Frequency
|
| Chipset |
- SIS 630E Single-Chip Corelogic / Multimedia /Datacom chipset
- Winbond 83697HF I/O for Super I/O Interface
- Build-in Integrated 128-bit 2D/3D Graphic Accelerator
|
| CPU Bus Frequency |
- Support Jump Select 66.7/100/133 MHZ CPU Bus Frequency
- CPU Bus Frequency , Choose 66 / 75 / 83 / 95 / 100 / 112 / 117 /
124 / 133 / 140 / 150 MHZ in BIOS Setup
- CPU Ratio Selection For 2 , 2.5 , 3 , 3.5 , 4 , 4.5 , 5 , 5.5 , 6
, 6.5 , 7 , 7.5 , 8 in BIOS Setup
|
| Jumperless |
- Support Jumperless Function by BIOS SETUP Let Users More Easier to
Change The Frequency And Ratio
|
| Expansion Slot |
- Three 32-bit PCI Bus Master Slots
- One AMR (Audio/Modem Riser) Slot
|
| System Memory |
- Support 2 Banks of SDRAM from 8MByte to 1GByte
- Virtual Channel Memory (VCM SDRAM) support
- Synchronous or Asynchronous Host / SDRAM Bus Frequency
- 2 X 168-pins DIMM Sockets
|
| On Board IDE |
- Support 2 X IDE Connectors for up to 4 IDE Drives
- Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4
Timing for up to 16M Bytes/s
- Support UTRA DMA-66 Bus Master IDE, Provide faster transfer rate
up to 66M Bytes/s
- Support LS-120 / ZIP Device
|
| On Board AGP V.G.A |
- Support AGP2.0 including 4x AGP data transfers
- Advanced HW Acceleration for DVD playback
- Ultra-AGPTM Architecture
- UMA Architecture with 2/4/8/16/32/64 MB System Memory Sharable as
Display Memory
- Integrated Programmable 24-Bit Ture-Color RAMDAC up to 230 MHz
Pixel Clock
- Support DirectX6 / DirectX7 & Software MPEG Playback
- VGA DRIVER Support Windows 95/98 and Windows NT 4.0 and Windows
2000
|
| On Board 3D Audio |
- Software Audio Controller With On Board CODEC Complete to AC97'
V2.1
- Support 3D Surround
- Support 3D Positioning
- Full Duplex Operation For Simultaneous Record And Playback
- Sound Driver for Windows 95 , Windows98 & Windows NT4.0 ,
Media Rack
|
| On Chip Lan Controller (630CF only) |
- IEE802.3 10/100 BASE T Standards
- Bios Boot-up from LAN
|
| On Board Ultra I/O |
- 4 X USB Connectors
- 2 X Serial Ports (16550 Fast UART Compatible)
- 1 X Parallel Port (EPP and ECP capabilities)
- 1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
- 1 X PS2 Mouse Connector
- 1 X Keyboard Connector
- 3 X Three Wire FAN Connector (Include CPU FAN)
- 1 X LINE IN / LINE OUT / Microphone Connector
- 1 X Game Port Connector (Support Two Joysticks)
- 2 X Analogue Audio CD Music line Connectors (different connector)
- 1 X Consumer IR Connector
- 1 X Standard IR Connector (Infrared)
- 1 X 10/100 LAN Connector (630CF only)
- 1 X VGA Connector
|
| ITE Smart Guardian |
- Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan
speed, Monitoring your Computer
|
| On Board USB |
- 4 X USB Ports Connector
- Support USB Keyboard & USB Mouse
|
| Power Saving |
- ACPI/APM Power Management
- Modem Ring remote wake up
- RTC Alarm Wake up
- Support Software Suspend & Power off
- Support Suspend to DISK
- Wake on LAN For OS
- Support Auto Power ON After Power Fail Function
- Support Keyboard Password on Function
- Support Power Button Ride (Instant off or Delay 4 second power
off)
|
| Power Supply |
- Support 20-pin ATX power supply (ATX-PW)
|
| BIOS |
- Award BIOS , Support Green function, Plug and Play Function
- 2MBit Flash ROM
|
| Dimension |
- ATX Form Factor with 30.5cm X 21cm
|
