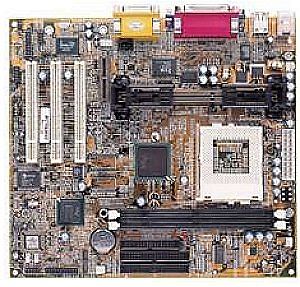

| PC770 Skt370/Slot1 VGA/V90/Sound/LAN M-ATX Motherboard |

|
|
| Chipset | Intel 810 |
| BIOS | AMIBIOS (Flash upgradeable) |
| Form | ATX |
| Speeds | Celeron 266-533MHz ONLY. NOT PII or PIII |
| BUS | CPUs with frequency at 66MHz in Slot 1/Socket 370 |
| RAM | Provides 2 DIMMs for PC100 SDRAM memory modules and is expandable up to 512MB |
| AGP | Integrated |
| PCI | 3 X PCI |
| ISA | - |
| AMR | YES |
| Onboard I/O | PS/2 Keyboard PS/2 Mouse Floppy port with 1MB/s transferring rate Serial port Parallel port with EPP and ECP 2x IDE (Ultra DMA/66) 2x USB |
| Onboard Sound | 3D PCI Sound Pro on
board, meets PC'98 Spec., HRTF Positional Audio supports
Microsoft's Direct Sound 3D and Aureal's A3D compatible
interface, with 4 channel speaker out ; Software Wave-table
Synthesizer |
| Onboard VGA | High Performance 64-bit
3D AGP Graphics Accelerator embedded; supports Windows 98
Multiple Display features; AGP Rev. 2.0 Spec. Compliant |
| Onboard Modem | 56K Fax/Modem on board, supports V.90 Fax/Modem standard for internet communication |
| Onboard NIC | 10/100Mbps Fast Ethernet
LAN on board, supports IEEE 802.3 and 802.3u standards, and
fully compliant ANSI X3.263 TP-PMD physical sub-layer |
| Board Dimensions | 245 x 223 x 40mm |
| Features | Bundled Corel
WordPerfect Suite 8; take advantage of leading-edge
collaboration and business tools (optional) Bundled Yamaha S-YXG50 Software Synthesizer, to play back MIDI files Bundled Gamut includes MP3 Encoder/Decoder, for professional audio applications Bundled Super Voice for Fax/Modem and Voice application; MediaRing Talk for Internet Phone communications Provides Trend Micro's Chip Away Virus and PC-Cillin 98 (OEM) for Windows 95/98 and internet virus protection |
| Gross Weight | 1.08kg |
| Gross Dimensions | 287 x 233 x 64mm |
| Notes | The Intel 810 chipset does not support Pentium II or Pentium III processors. |
| Incompatibilities | Fujitsu/Samsung
Hard Drives - Intermittent data corruption, Win9x registry
errors.
The built-in HSP modem may not function with all ISP's. (AOL for instance) |
