| 845EPRO |
|
|
Processor
PGA 478B Socket for Intel Pentium4 478 Pin FCPGA2 package processor,
support 400/533MHz System Bus Frequency
Chipset
Intel 845E Memory Controller Hub (MCH)
Intel 82801DB I/O Controller Hub (ICH4)
Expansion Slots
Support 5xPCI Slots and 1xCNR (Communication Network Riser)
1 x AGP Slot support AGP 4X (1.5V) only
System Memory
2 x 184-pin DDR Module Socket Support Max 2GB DDR200/DDR266 DDR DRAM
Jumpless
Support Jumpless function by BIOS SETUP let users more easier change the
Frequency and ratio
Magic Setting
Support CPU Front Side Bus step by step setting in BIOS SETUP let users have
many choice when use over-clock function
Ultra DMA 100 IDE
Support 2 x Ultra DMA 100 IDE Interface (Up to 4 IDE Devices & 100MB/s
transfer rate)
ATAPI IDE CD-ROM, CD-R, CD-RW and LS-120 Support
PC'99 Colorful I/O Ports
6xUSB 2.0/1.1 Ports, 2xSerial Ports, 1xParallel Port
1xPS/2 Keyboard Port, 1xPS/2 Mouse Port, 1xFloppy Port
1xGame/MIDI Port, Line-in/out/MIC Ports
Extra ATA133 IDE

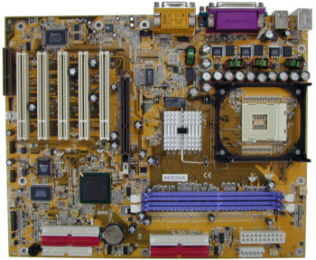

Support extra 2 channel ATA133 IDE for 845EDAK
On Board Audio
Software Audio Controller with Onboard CODEC Compliant to AC'97 2.2
Support 6-Channel 3D Surround & Positioning, Full Duplex
Dimension
ATX form factor (30.5cm x 24.4cm)
Special Function
ACPI supporting for OS Directed Power
Management
MODEM Ring remote wake up
RTC Alarm, wake On LAN
Support ATX12V Power Supply
PC Health Monitor CPU temperature, System temperature, System Voltage
(Vcore,Vtt,Vcc3,5V,12V……), FAN speed
BIOS Write Protect function to avoid Virus crash data
Bundle Recovery Genius protect Hard Disk data
Power Fail Recovery support
CPU, DRAM, AGP Voltage minor adjustable
Magic BIOS Utility support live Update BIOS function from web
