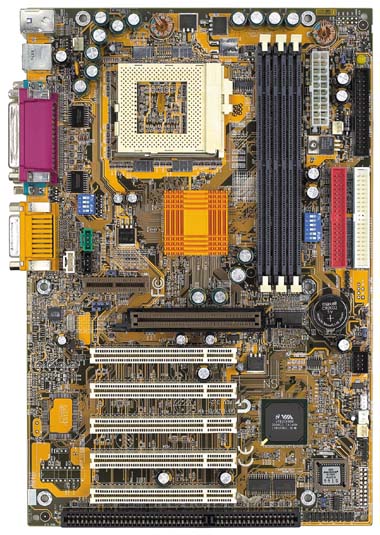

Specifications ]
PROCESSOR
 |
|
 |
Socket 370 for Intel®
FC-PGA Pentium® III or other compatible processors |
|
Supports CPU multiplier 3.0~9.5 for future processors |
|
Auto/66/75*/83*/100/112*/124*/133/140*/150* MHz FSB |
|
AUTO detect CPU voltage |
CHIPSET |
|
|
VIA Apollo Pro Family AGPset |
|
AC97 codec |
DRAM |
|
|
3 x 168-pin DIMM sockets |
|
Supports PC-100 / PC-133 SDRAM and VCM SDRAM |
|
Supports up to 1.5GB DRAM |
|
Supports only 3.3V SDRAM DIMM |
|
Supports 72bit ECC type DRAM integrity mode |
SLOT | |
|
1 x AMR (Audio Modem Riser) slot |
|
1 x AGP slot supports 4X mode & AGP 2.0 compliant |
|
5 x PCI slots support 33MHz & PCI 2.2 compliant |
|
1 x ISA slot |
I/O  |
|
|
2 x Ultra DMA 100/66 Bus Master IDE ports on board |
|
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board |
|
1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board |
|
2 x USB ports on board |
|
2 x USB ports by cable (optional accessory) |
|
IrDA header ready |
POWER |
|
|
ATX Power connector |
|
Power-on by LAN, RTC, Modem & switch |
|
Power-off by Windows® 95/98/2000 shut down & switch |
|
Supports USB device wake-up |
|
Stop CPU fan during entering suspend mode |
FORM FACTOR |
|
|
ATX , 4 layer PCB (30.5*20.3 cm) |
H/W MONITORING |
|
|
CPU/System fan revolution detect |
|
CPU /System temperature detect |
|
System voltage detect (Vcore,Vcc3,Vcc,+12V) |
|
CPU overheat shutdown detect |
BIOS  |
|
|
2Mbit flash RAM |
|
AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions |
|
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable |
|
Supports @BIOS |
OTHER FEATURES  |
|
|
Suspend-To-RAM
(STR) |
|
Includes Wake-On-LAN header (WOL) |
|
Includes Wake-On-Ring (WOR) |
|
Includes 3 fan power connectors |
|
Supports Gigabyte Easy Tune III |
|
Poly fuse for keyboard over-current protection |
DRIVER |
|
|
Gigabyte Windows Utility Manager |
|
VIA 4 in 1 service pack utility |
|
Creative PCI sound driver |
