WhatMEM
Memory Detection
and Test Software

WhatMEM Pounds Your PC's Memory Mercilessly

WhatMEM is the easy way to find out what memory is in your system and beat errors into submission. First the classical PC Magazine Editor's Choice Discovery Engine from InfoSpotter Snapshot is run to detect the CPU, cache, and memory in the system. Then, the completely rewritten test algorithms from PC Clinic slam the memory with 52 different patterns that are intensified when an error is detected. WhatMEM works HARD to find memory bugs.

Here are the major features of WhatMEM

Identifies and display system configuration
Identifies installed memory
1. Main RAM
2. Cache
3. ROM
Tests Memory to discover read/write/addressing errors
1. Base Memory
2. Extended Memory
3. XMS Memory (using XMS driver)
4. EMS Memory (using EMM driver)
Runs Memory tests in different test modes
1. Quick Test - fast assessment in 32-bit mode
2. Single Pass - one full pass for standard assessment
3. Multiple pass - selected tests for number of passes or amount of time
Test Log records results for viewing, printing, saving to a file.

Perfect for Consultant, OEM, and Site License

We have prepared WhatMEM for retail sale and for licensing to system builders, memory and parts distributors, consultants, technicians, MIS departments, and software companies (for bundling or inclusion in their software packages).

Custom Test Algorithm Development

If you are a memory developer or distributor, we will prepare special algorithms and test modules to exercise memory modules or parts to your specifications, and provide them in a custom version of WhatMEM. Our engineering services are affordable for any serious memory provider.

WhatMEM's Displayed Information

WhatMEM shows you a massive amount of information about your system and memory, as shown with the below sample printed screens from a Compaq Presario computer. Here's an actual screen shot.

WhatMEM Initial Screen

WhatMEM Memory Detection and Test Version 3.40 Release date 05/6/97

+------------------[_]+     +- System Memory Information ---------------------+

¦Memory test        ¦     ¦                        Extended Memory Reported ¦

¦ ------------------- ¦     ¦ XMS 3.0 function 88H:  1,083.9K                 ¦

¦ Configuration info  ¦     ¦                 CMOS:   15,360K                 ¦

¦ View testing log    ¦     ¦         BIOS int 15H:(blocked by XMM)           ¦

+---------------------+     ¦       Detection test:(Blocked by EMM)           ¦

                            ¦-------------------------------------------------¦

                            ¦         Base    Extended        EMS        XMS  ¦

                            ¦ Total:  640K     15,360K         0K    15,360K  ¦

                            ¦-------------------------------------------------¦

                            ¦   Total memory found:    16,384K                ¦

                            ¦-------------------------------------------------¦

                            ¦  Processor: Intel Pentium                       ¦

                            ¦      Cache: 8K L1 data cache                    ¦

                            ¦             8K L1 instruction cache             ¦

               WhatMEM Memor¦             128K External cache                 ¦

         Advanced System Con¦-------------------------------------------------¦

 Call NOW for Catalog:   (81¦ Extended Memory Test:N/A, EMS or XMS is loaded  ¦

                            ¦      EMS Memory Test:N/A, EMS not loaded        ¦

                     Registe¦      XMS Memory Test:Ready for testing          ¦

                     Company+-------------------------------------------------+





¦F1 Help¦ Select option and press Enter or type first letter¦       ¦Esc Exit¦

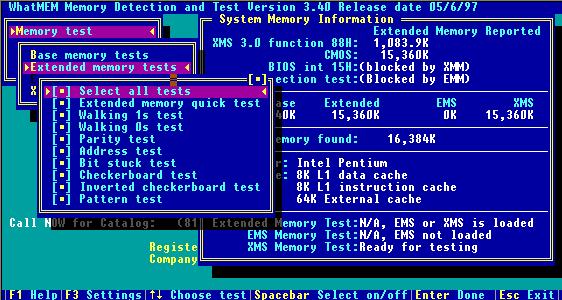

WhatMEM Memory Test Screen

+-----------------------------[_]+

¦[_] Select all tests          ¦

¦ [_] Extended memory quick test ¦

¦ [_] Walking 1s test            ¦

¦ [_] Walking 0s test            ¦

¦ [_] Parity test                ¦

¦ [_] Address test               ¦

¦ [_] Bit stuck test             ¦

¦ [_] Checkerboard test          ¦

¦ [_] Inverted checkerboard test ¦

¦ [_] Pattern test               ¦

+--------------------------------+

WhatMEM Test Settings Screen

WhatMEM allows you to setup the test for various capabilities, including turning off cache, flushing it as the test progresses, or ignoring it. This lets you set up the cache using pre-boot CMOS RAM settings to prevent cache from interfering with the test.

+---------------------------------------------------------------------------[_]+

¦                  Number of passes:  9000                                     ¦

¦                             Pause: Between test passes                       ¦

¦               Time limit per test: 01:00:00                                  ¦

¦              Time limit for batch: No limit                                  ¦

¦ Exit program when testing is done: No                                        ¦

¦ RTC accuracy limit (sec. per day):     0                                     ¦

¦        Serial port start baudrate:   2400     End baudrate:   9600           ¦

¦      Base memory start test range:      0K   End:    640K  [_] All memory    ¦

¦  Extended memory start test range:   5120K   End:  16384K  [_] All memory    ¦

¦       EMS memory start test range:      0K   End:      0K  [ ] All memory    ¦

¦       XMS memory start test range:      0K   End:  15360K  [_] All memory    ¦

¦     Memory test CPU cache control: Smart, turn off during test if detected   ¦

¦      Memory test L2 cache control: Always turn off and flush if needed       ¦

¦                 Test printer type: Text printer                              ¦

¦            Printer test file name:                                           ¦

¦            Log information stored: All Information                           ¦

¦                        Log device: File                                      ¦

¦          Rewrite log or add to it: Add to it                                 ¦

¦                     Log file name: \TESTING.LOG                              ¦

+------------------------------------------------------------------------------+

WhatMEM Configuration Screen

+- System Configuration ----------------------------------------------------[_]

¦ Computer type: AT Compatible (M=FCH, S=01H, R=00H)                         _

¦      BIOS Date: 04/12/1995   Type: Plug and Play, PCI, Not Shadowed          _

¦ BIOS Copyright: Copyright(c) 1982, 1994 Compaq Computer Corporation - all    _

¦      CPU Class: Pentium (Single processor)                                   _

¦      Processor: 90 MHz Intel Pentium                                         _

¦   Supports MMX: No                                                           _

¦          Cache: 8K L1 data cache, 2-way set associative, 32 byte line size   _

¦                 8K L1 instruction cache, 2-way set associative, 32 byte line _

¦                 128K External cache                                          _

¦     Note: Windows is running. Cache information may be wrong.                _

¦   Co-processor: (Built-in)                                                   _

¦       Bus type: ISA, PCI                                                     _

¦ MEMORY --------------------------------------------------------------------- _

¦                     Base       Extended            EMS            XMS        _

¦         Total:      640K         15360K           None         15360K        _

¦     Available:      592K           None           None         23384K        _

¦ DRIVES --------------------------------------------------------------------- _

¦     Diskette 0:    1.44 MB (3.5)                                             _

¦   Fixed disk 0:  1214.7 MB  64 heads,   617 cylinders,  63 sectors           _

¦   Fixed disk 1:  1210.7 MB  64 heads,   615 cylinders,  63 sectors           _

¦   CDROM drives: 1 (F:)            MSCDEX version: 2.95                       _

¦ VIDEO ---------------------------------------------------------------------- _

¦      Primary: Cirrus Logic SVGA, 1024K                                       _

¦    Copyright: Copyright 1992-1995 Cirrus Logic, Inc. All Rights Reserved.    _

¦ VESA version: 1.2      OEM: Cirrus Logic GD-54xx VGA                         _

¦    Secondary: None                                                           _

¦ DEVICES -------------------------------------------------------------------- _

¦   Serial Ports: None                                                         _

¦ Parallel Ports: LPT1: at 0378                                                _

¦     Sound card: Sound Blaster Pro DSP Version 3.1                            _

¦       Keyboard: Enhanced                                                     _

¦     Game Ports: None (Paddles/joystick may not be connected)                 _

¦         Mouse: 2 button PS/2 Mouse, driver version  8.30

+-----------------------------------------------------------------¦F10 Print¦--+
