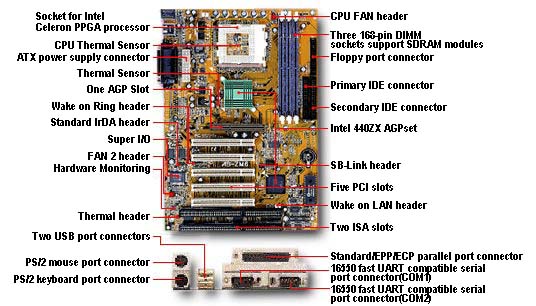

[ ZM6 Socket 370 AGP Based ATX Mainboard With CPU SOFT MENU^TM II Technology ]

The ZM6 introduces a new dimension in the power/performance versus cost equation for mainboards. Utilizing Intel's top of the line, cost-down chipset, the ZX, ABIT^®is able to offer an incredibly powerful yet cost effective solution for the socket 370 platform that out-shines the competition in features and performance.

[ Specifications ]

CPU
1.Supports Socket 370 Intel® Celeron® processor (Based on 66/100MHz clock)

Chipset
1.Intel^® 440ZX(66/100MHz) AGPset
2.Supports Ultra DMA/33 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports AGP 1X/2X

Memory
1.Three 168-pin DIMM sockets support SDRAM module
2.Supports up to 256MB MAX. (8, 16, 32, 64, 128,256MB SDRAM)

System BIOS
1.CPU SOFT MENU^TM II eliminates the need for jumpers or DIP switches needed to set CPU parameters
2.Award Plug and Play BIOS supports APM, DMI
3.Write-Protect Anti-Virus function by AWARD BIOS
4.Year 2000 Compliant Multi I/O

Functions
1.One Floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2.Two channels of bus master IDE ports connectors for up to four IDE devices
3.One Built-in Standard/EPP/ECP parallel port connector
4.Two Built-in 16550 fast UART compatible serial port connectors
5.Built-in PS/2 keyboard and PS/2 mouse ports connectors
6.Built-in two USB port connectors
7.Built-in standard IrDA TX/RX header
8.Built-in Wake On LAN header
9.Built-in SB-LinkTM header
10.Built-in Wake on Ring header

Miscellaneous
1.ATX form factor
2.One AGP slot, Five PCI slots and Two ISA slots
3.Hardware monitoring - Included fan speed, voltages, CPU and system environment temperature
4.Supports Keyboard and Mouse Wake Up
5.Dimensions : 305*210mm
