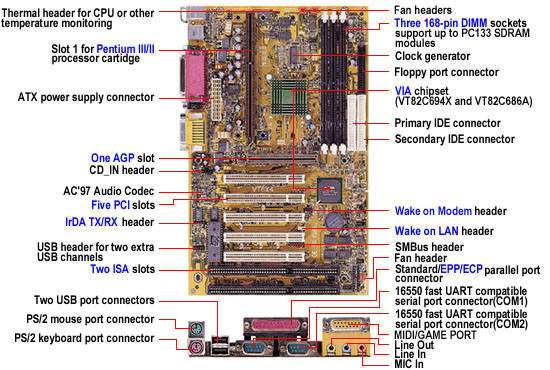

[ VT6X4
PentiumŽ III AGP Based ATX
Mainboard Supporting 133 MHz FSB &
4X AGP With CPU SOFTMENUTM
II Technology
]
ABIT
has broken through the PC 100 limitation, elevating the PC front side
bus speed to 133 MHz. The VT6X4's 2 Channels of Bus Master IDE ports support
up to 4 UDMA 33/66 devices. 4 USB and AGP4X offer greatest functionality.
For those searching for stability in the VIA chipset you have found it
with the VT6X4.
[
Specifications ]
CPU
1. Supports Intel Pentium®
III 450~800 MHz processor cartridge
based on 100 & 133 MHz FSB
2. Supports Intel PentiumŽ II 233 ~ 450 MHz processor cartridge based
on 66 & 100 MHz FSB
2. Supports
Intel CeleronŽ 266 ~ 533 MHz processor based on 66 MHz FSB
3. Reserves support for future Intel
PentiumŽ III processors
Chipset
1. VIA chipset (VT82C694X and VT82C686A)
2. Supports
Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP
1X/2X/4X (Sideband) 3.3V device
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2. Supports
up to 1.5GB MAX. (8, 16, 32, 64, 128, 256,512MB
SDRAM)
3. Supports
ECC
Audio
1.
AC'97 Digital Audio controller integrated
2. AC'97 Audio CODEC on board
3. Audio driver included
System
BIOS
1. SOFTMENUTM
II eliminates the need for jumpers
or DIP switches to set CPU parameters.
2. Award Plug and Play BIOS supports APM
and DMI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. 2x
Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66
devices
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1x Floppy
Port (up to 2.88MB)
4. 1x
Parallel Port (EPP/ECP)
5. 2x Serial
Ports
6. 2x USB Connectors
7. On
board USB header for Two extra USB channels
8. Built-in IrDA TX/RX header
9. Audio connector (Line-in,
Line-out, Mic-in, and Game Port)
Miscellaneous
1.
ATX form factor
2. 1 AGP slot, 5 PCI
slots and 2 ISA slots
3. Hardware
monitoring - Including fan speed, voltages, CPU and System temperature
and one thermal header for other devices temperature monitoring
4. Built-in Wake on LAN header
5. Built-in Wake on Ring header
6. PC99
Colour connectors
|
