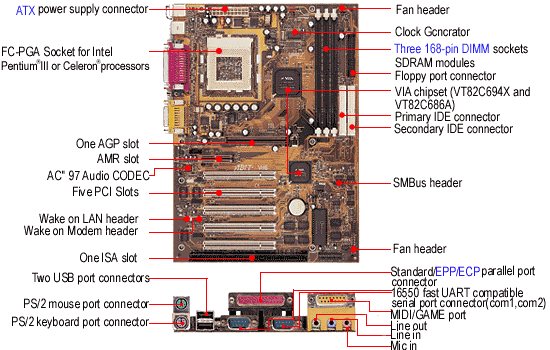

[ VH6 Pentium® III AGP Based ATX Mainboard Supporting 133 MHz FSB & Ultra DMA 66 With SOFTMENUTM
II Technology ]
[ Specifications
]
CPU
1. Supports Intel Pentium® III 450~933 MHz
2. Supports Intel Celeron® II 500 ~ 700 MHz processor socket based on 66 MHz FSB
3. Reserves support for future Intel Pentium® III / Celeron processors
Chipset
1. VIA chipset (VT82C694X and VT82C686A)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X/4X (Sideband) 3.3V device
Memory
1. Three 168-pin DIMM sockets support SDRAM
module
2. Supports up to 768MB MAX. (8, 16, 32, 64, 128, 256MB
SDRAM)
3. Supports ECC
Audio
1. AC'97 Audio CODEC on board
2. Audio driver included
System BIOS
1. CPU SOFT MENUTM II technology and DIP
switched function.
2. Award Plug and Play BIOS supports APM, DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.
Multi I/O Functions
1. 2 channels bus Master IDE Ports support Ultra DMA 33/66 (up
to 4 devices)
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8.Built-in IrDA TX/RX header .
9. Audio connector (Line-in, Line-out, Mic-in, and Game Port)
Miscellaneous
1. ATX form
factor
2. 1 AGP slot, 5 PCI slots , 1 ISA slot
and 1AMR slot.
3. Hardware
monitoring - Including fan speed, voltages, CPU and System temperature and one
thermal header for other devices temperature monitoring
4. Built-in Wake on LAN
header
5. Built-in Wake on Ring header |
