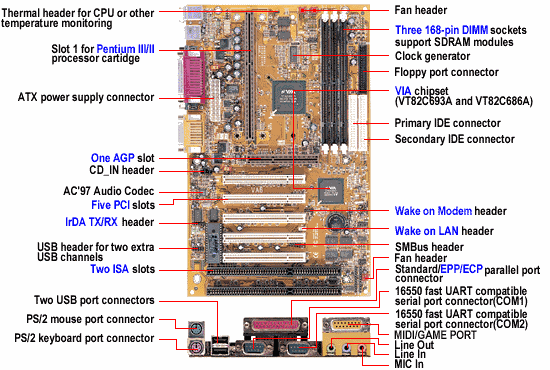

[ VA6 Pentium® III AGP Based ATX Mainboard Supporting 133 MHz FSB & Ultra DMA 66 With CPU SoftMenuTM II Technology ]
ABIT Computer announces the VA6, supporting all Intel Pentium® III/II and CeleronTM processors with FSB up to 133 MHz using the VIA chipset. The VA6 supports all performance level features such as AGP 1X/2X and three 168-pin DIMM sockets supporting up to 768 MB MAX with ECC and includes an integrated AC'97 Digital Audio controller. The VA6 also features ABIT's SoftMenuTM II as well as 2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices. With 4 USB and hardware monitoring capability, the VA6 provides power and features at an affordable price.
[
Specifications ]
CPU
1. Supports Intel Pentium®
III 450~733MHz processor cartridge
based on 100 & 133 MHz FSB
2. Supports Intel Pentium®
II 233~450MHz processor cartridge based on 66 & 100 MHz FSB
3. Supports Intel CeleronTM
266~533MHz processor based on 66 MHz FSB
4. Reserves support for future Intel Pentium®III processors
Chipset
1. VIA
chipset(VT82C693A and VT82C686A)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP
1X/2X(Sideband) 3.3V device.
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2. Supports up to 768MB MAX.(8, 16, 32, 64,
128,256MB SDRAM)
3. Supports ECC
Audio
1. AC'97 Digital
Audio controller integrated
2. AC'97 Audio CODEC on board
3. Audio driver included
System
BIOS
1. SOFT MENUTM
II eliminates the need for jumpers or DIP switches to set CPU parameters
3. Award Plug and Play BIOS supports APM
and DMI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi
I/O Functions
1. 1x
Floppy Port (up to 2.88MB)
2. 2x
Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66
devices
3. 1x Parallel Port(EPP/ECP)
4. 2x Serial Ports
5. PS/2 Keyboard
and PS/2 Mouse Connectors
6. 2x USB Connectors
7. Build-in
IrDA TX/RX header
8. On board USB header for Two extra USB channels
9. Audio Connectors (Line-in, Line-out, Mic-in,
and MIDI/Game Port)
Miscellaneous
1.
ATX form
factor
2. 1 AGP slot, 5 PCI
slots and 2 ISA slots
3. Hardware monitoring - Including Fan speed,
Voltages, System environment temperature and one Thermal header for CPU
or other temperature monitoring.
4. Built-in Wake on LAN header
5. Built-in Wake on Modem header
6. PC99 Colour connectors
