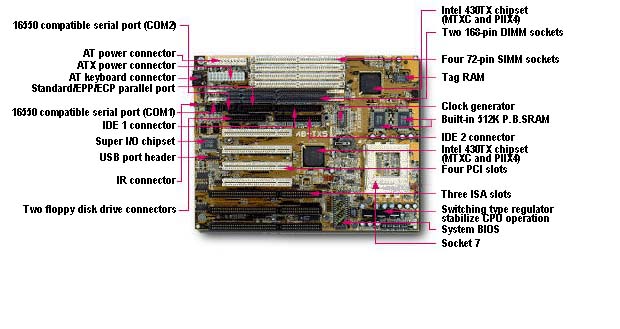

[ TX5 586/686 Processor Based AT Mainboard With CPU SOFT MENUTM Technology ]
Based on Intel's 430TX chipset,
the TX5 is uniquely designed for file servers, work stations and professional
users. The TX5 has a special CPU heat management function (EISCA)
which monitors the CPU. It includes all of the required specifications
for PC97 such as Ultra DMA/33 IDE interface
and ACPI power management functions. Two 168-pin
DIMM sockets support Synchronous,FP, and EDO DRAM. The TX5 also
implements SOFT MENUTM,
leading technology software that eliminates all jumpers on the mainboard
that set CPU parameters allowing end-users to easily and correctly install
their own CPU upgrades whether it be a Pentium® processor
with MMXTM technology, AMD-K6TM
processor, or Cyrix 6x86MXTM processor.
[
Specifications ]
CPU
1. Employs switching type regulator to stabilize
CPU operation
2. CPU Monitoring Management (EISCA)
3. Supports 55, 60,
66, 75*, 83* MHz CPU external clock speeds
4. Supports Pentium® processors and Pentium®
processors with MMXTM technology
5. Supports AMD-K5TM and AMD-K6TM processors
6. Supports Cyrix 6x86TM/ 6x86LTM and Cyrix 6x86MXTM
-PR150 ~ PR233 processors*
7. Supports IDT WinChip C6 processors
Chipset
1.Intel
430TX chipset (MTXC and PIIX4 chips)
2. Supports Ultra DMA/33 IDE protocol
3. Supports Advanced Configuration and Power Interface (ACPI)
specification
Memory(DRAM)
1.Two168-pin
DIMM sockets
for 3.3V unbuffered DRAM modules
2. DIMM sockets support SDRAM, EDO and FP DRAM
3. Four 72-pin SIMM sockets support EDO and FP DRAM
4. Supports up to 256MB
L2
Cache Memory
1.Built-in
512K P.B. SRAM
System
BIOS
1. CPU SOFT
MENUTM eliminates the need for jumpers or DIP switches
to set CPU parameters
2. Award Plug and Play BIOS supports APM,
DMI, and ACPI
3. Write-protect Anti-Virus
function by AWARD BIOS
4. Year 2000 compliant
Multi
I/O Functions
1. One floppy port
connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels of bus master IDE ports for up to four IDE devices (including
LS-120MB floppy drive)
3. One built-in Standard/EPP/ECP parallel
port
4. Two built-in 16550 compatible serial ports
5. Built-in AT keyboard connector with option to convert to PS/2 keyboard
6. Built-in PS/2 mouse header with PS/2 mouse connector and cable included
7. One USB header for two optional USB port
8. Built-in standard IrDA Tx/RX header
Miscellaneous
1.Baby
AT form factor
2. Three
ISA slots and
four PCI slots
3. Reserved circuitry for LDCM feature
