[TH7-RAID] - |
850

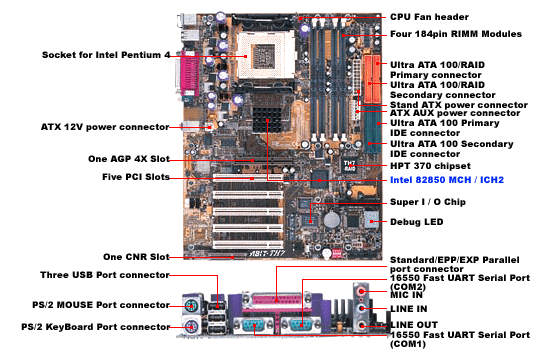

Based Pentium® 4 ATX Mainboard with IDE RAID Function |
[ 850 Based Pentium® 4 ATX Mainboard with IDE RAID Function ]
ABIT unleashes the TH7-RAID. Designed to support all Intel P4 CPUs, the TH7-RAID is a powerhouse. ATA/100 and RAID 0/1/0+1 are standard features. Add in support for up to 2GB of the latest memory standard in RAMBUS and you have a top of the line motherboard. The TH7-RAID takes you to the next level of computing.
[ Specifications ]
CPU
1. Supports Intel Pentium® 4 Socket 423 based processor
2. Supports 400MHz System Data Bus
Chipset
1. Intel® 850 (ICH2) chipset
2. Supports 400MHz (Front Side Bus)
3. Supports AGP 4X 1.5V device only
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode
Ultra DMA 100
1. High Point HTP370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Supports up
to Four 184-pin Direct Rambus RIMM modules
2. Supports up to
2GB MAX.
3. Supports
PC600 or PC800 RDRAM
Audio
1.
AC'97 Digital Audio controller integrated
2. AC'97 2-Channel Audio CODEC on board
System BIOS
1.
SOFT MENUTM II Technology
2. Award Plug and Play BIOS supports APM and ACPI
3. Write-Protect Anti-Virus function by AWARD BIOS
Multi I/O Functions
1. 4
Channels Bus Master IDE Ports support Ultra DMA 33/66/100
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 3 USB Ports
7. Audio connector (Line-in, Line-out, MIC-in)
LAN (Manufacturer Option)
1. On board Intel 82559 PCI local bus Fast Ethernet controller
2. 10/100Mb Operation
3. Supports ACPI & Wake on LAN
4. User friendly driver included
Miscellaneous
1. l ATX form factor
2. 1 AGP slot, 5 PCI slots and 1CNR slot
3. Hardware Monitoring - Including Fan speed, Voltages, CPU and System
temperature and one thermal header for other devices temperature
monitoring
4. Keyboard and Mouse Power On
Please Note:
1. Switching Power Supply must meet ATX 2.03 specification with ATX12v
and AUX Power connectors.
2. Case designed for Pentium 4 platform is required.
