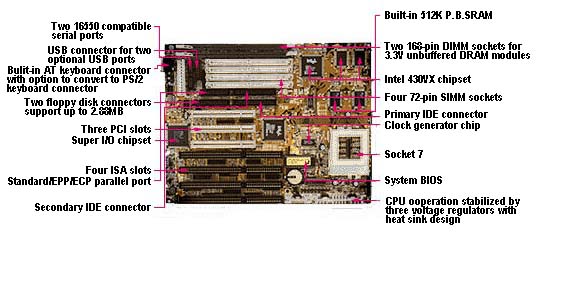

[ SM5 586/686 Processor based Mainboard With CPU SOFT MENUTM Technology ]
The SM5 features
ABIT's Soft Switch function. This function
allows all of the CPU parameters to be set with SOFT
MENUTM, a software program located
within the system's BIOS. No jumpers or DIP switches are needed to set
CPU parameters! End users are now able to easily and conveniently change
their own CPU with the help of user-friendly software. The SM5 is fully
equipped with a 430VX chipset, high performance
PCI Rev. 2.1, and a combination of two
168-pin DIMM and four 72-pin SIMM sockets, supporting a total of
four banks of system memory. The DIMM sockets
support Synchronous, FP and EDO DRAM and satisfy
next generation's 64-bit memory standard. The SM5 has 512K of built-in
L2 cache but offers the same economical advantage as ABIT's other mainboards.
Power users, professional users, and users designing servers and workstations
satisfy their high-end computing environment needs with the SM5.
[
Specifications ]
CPU
1.CPU operation
stabilized by three voltage regulators with
heat sink design
2. Supports
50, 55, 60, 66, 75*, 83* MHz CPU external
clock speeds
3. Supports
100~200 MHz Pentium® processors and 166 ~ 233MHz Pentium®
processors with MMXTM technology
4. Supports
AMD-K5TM PR100~PR166 and AMD-K6TM/166 ~ 233 processors
5. Supports
Cyrix 6x86TM/ 6x86LTM P150+ ~ P200+* and Cyrix 6x86MXTM
-PR150 ~ PR200 processors*
6. Reserved
circuitry for future processors
Chipset
1.
Intel 430VX chipset
2. Supports
PCI Rev. 2.1
Memory
(DRAM)
1.Two
168-pin DIMM
sockets for 3.3V unbuffered DRAM modules
2. DIMM sockets
support Synchronous, EDO and FP DRAM
3. Four 72-pin
SIMM sockets
4. SIMM sockets
support EDO and FP DRAM
5. Supports
up to 128MB
Cache
Memory
1.Built-in
512K P.B. SRAM
System
BIOS
1.CPU SortMenuTM
eliminates the need for jumpers or DIP switches needed to set CPU parameters
2. Award Plug
and Play BIOS supports APM, DMI and ACPI
3. Write-protect
Anti-Virus function by AWARD BIOS
4. Year 2000
compliant
Multi
I/O functions
1.One floppy port
connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels
of bus master IDE ports connectors for up to four IDE devices (including
LS-120MB floppy drive)
3. One built-in
Standard/EPP/ECP parallel port
4. Two built-in
16550 fast UART compatible serial ports connectors
5. Built-in
AT keyboard connector with option to convert to PS/2 keyboard connector
6. Built-in
PS/2 mouse header with PS/2 mouse connector and cable included
7. One USB
header for two optional USB port connectors
Miscellaneous
1.Baby
AT form factor
2. Four
ISA slots and
Three PCI slots
3. Supports
keyboard Re-new fuse
