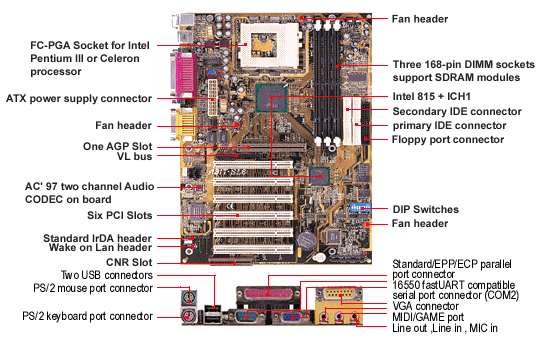

[ SL6 Pentium®III
i815 Based ATX Mainboard
Supporting With SoftMenuTMII
Technology ]
With the launch of intel's much-anticipated
i815("solano")chipset, ABIT is pround to announce the world's very first Solano
mainboard, the ABIT SL6. Designed for use with Pentium® III and Celeron®
CPUs , the SE6 is an AGP base ATX mainboard, support Ultra ATA 66 and SDRAM,with ABIT's
patented SoftMenu™ II technology. ABIT's SL6 meets the requirements for desktop
systems; both now and into the future .
[ Specifications
]
CPU
1. Intel Pentium® III 500~1GHz processor
socket based on 100 & 133MHz FSB
2. Intel Celeron® 566~677MHz processor
socket based on 66MHz FSB
3. Reserves support for future Intel Pentium® III /Celeron processors
Chipset
1. Intel® 815
chipset (ICH1)
2. Supports 66/100/133MHz(Front Side Bus)
3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V
device.
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/66,Ultra ATA/33 mode.
Graphics
1. Chipset integrated
AGP 2X 3D graphics acceleration
2. Support AIMM (AGP In-line Memory Module)
Memory
1. Three 168-pin DIMM
sockets support SDRAM module
2. Supports up to 512MB MAX. ( 64, 128,256MB SDRAM)
3. Support 100MHz,133MHz
SDRAM interface
Audio
1. AC'97 2-channel Audio CODEC on board
2. Audio driver included
System BIOS
1. CPU SOFT MENUTM II technology
and DIP switches funtion.
2. Award Plug and Play BIOS supports APM, DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.
Multi I/O Functions
1. 2
channels bus Master IDE Ports support Ultra DMA 33/66 devices
2. PS/2 Keyboard and PS/2 Mouse
Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8.1 standard 15 pin VGA connector.
9. Audio
connector (Line-in, Line-out, Mic-in, and Game Port)
Miscellaneous
1. Support STR(Suspend to DRAM)
2. ATX form factor
3. 1 universal AGP slot, 6 PCI slots and 1 CNR slot
4. Hardware monitoring - Including fan
speed, voltages, System
environment temperature,and one Thermal header for CPU or other temperature monitoring
5. Keyboard and Mouse Power On
6. Built-in Wake on LAN /Wake on Modem/Open Chassis
header
7. Built-in IrDA TX/RX header
8. VL-Bus Supports Flat Panel display or TV out (option)
|
