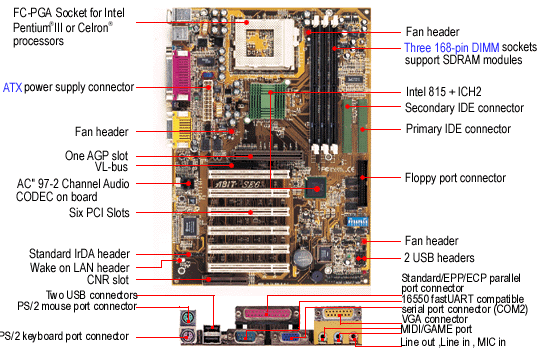

[ SE6 Pentium®III
815E Based ATX Mainboard
With SoftMenuTMII Technology ]
The much anticipates i815("solano")chipset has arrives and it
performs. The SE6 includes integrated audio and graphics features such as AC'97 2.1
CODEC,2X 3D Graphics Acceleration as well as an AGP Slot and a CNR Slot . With a 133MHz
capable front -side bus, Ultra ATA 100 , ICH2and up to 4 USB ports, this mainboard is
ready for you today ; it's ready foryou tomorrow.
[ Specifications
]
CPU
1. Intel Pentium® III 500~1GHz processor
sockets based on 100 & 133MHz FSB
2. Intel Celeron® 566~677MHz processor
sockets based on 66MHz FSB
3. Reserves support for future Intel® Pentium® III /Celeron processors
Chipset
1. Intel 815E (ICH2)
chipset
2. Supports 66/100/133MHz(Front Side Bus)
3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V
device.
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode.
Graphics
1. Chipset integrated
AGP 2X 3D graphics acceleration.
2. Support AIMM (AGP In-line Memory Module)
Memory
1. Three 168-pin DIMM
sockets support SDRAM module
2. Supports up to 512MB MAX. ( 64, 128,256MB SDRAM)
3. Support 100MHz,133MHz
SDRAM interface
Audio
1. AC'97 2-channel Audio CODEC on board
2. Audio driver included
System BIOS
1. CPU SOFT MENUTM II technology
and DIP switche funtion.
2. Award Plug and Play BIOS supports APM, DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.
Multi I/O Functions
1. 2
channels bus Master IDE Ports support Ultra DMA 33/66/100 (up to 4 devices)
2. PS/2 Keyboard and PS/2 Mouse
Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8.1 standard 15 pin VGA connector.
9. Audio
connector (Line-in, Line-out, Mic-in, and Game Port)
Miscellaneous
1. Support STR(Suspend to DRAM)
2. ATX form factor
3. 1 universal AGP slot, 6 PCI slots and 1 CNR slot
4. Hardware monitoring - Including fan
speed, voltages, System
environment temperature,and one Thermal header for CPU or other temperature monitoring
5. Keyboard and Mouse Power On
6. Built-in Wake on LAN /Wake on Modem/Open Chassis
header
7. Built-in IrDA TX/RX header
8. VL-Bus Supports Flat Panel display or TV out (option) |
