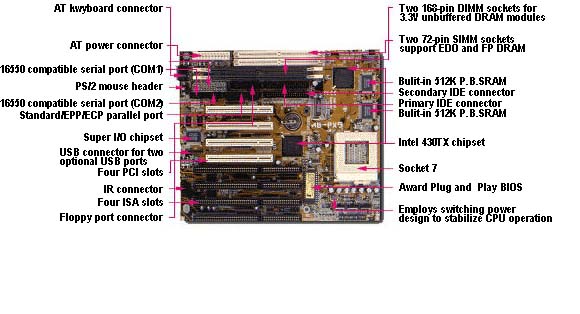

[ PX5 586/686 Processor Based Mainboard With SOFT MENUTM Technology ]
Based on Intel's
430TX chipset, the PX5 includes all of the
required specifications for PC 97 such as Ultra DMA/33
IDE interface and ACPI power management functions.
The PX5 also implements SOFT MENUTM,
a leading technology that eliminates all jumpers on the mainboard that
set CPU parameters. With SOFT MENUTM
end-users are able to use software to easily and correctly install their
own CPU, enabling them to upgrade to a Pentium® processor
with MMXTM
technology, AMD-K6TM
processor, or Cyrix 6x86MXTM processor.
[
Specifications ]
CPU
1.Employs switching type regulator to stabilize
CPU operation
2. Supports 50, 55, 60, 66, 75*, 83* MHz CPU
external clock speeds
3. Supports Pentium® processors and Pentium®
processors with MMXTM technology
4. Supports AMD-K5TM and AMD-K6TM processors
5. Supports Cyrix 6x86TM/6x86LTM and Cyrix 6x86MX
TM - PR150 ~ PR200 processors*
6. Reserved circuitry for future processors
Chipset
1.Intel
430TX chipset (MTXC and PIIX4 chips)
2. Supports Ultra DMA/33 IDE protocol
3. Supports Advanced Configuration and Power Interface (ACPI)
specification
4. Supports OS directed power management (Windows® 95
soft power off)
5. Supports PCI Rev. 2.1
Memory (DRAM)
1.Two
168-pin DIMM
sockets support unbuffered SDRAM, EDO and
FP DRAM
2. Two 72-pin SIMM sockets support EDO and FP DRAM
3. Supports up to 256MB
L2 Cache Memory
1.Built-in 512K P.B. SRAM
System
BIOS
1.CPU SoftMenuTM eliminates the need for jumpers or DIP switches
to set CPU parameters
2. Award Plug and Play BIOS supports APM,
DMI, and ACPI
3.Write-protect Anti-Virus function by AWARD BIOS
4. Year 2000 compliant
Multi
I/O functions
1. One floppy port connectors supporting up to 2.88MB floppy drive and
3 mode floppy drive
2. Two channels of bus master IDE ports for up to four IDE devices (including
LS-120MB floppy drive)
3. One Standard/EPP/ECP parallel port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in AT keyboard connector with option to convert to PS/2 keyboard
connector
6. Built-in PS/2 mouse header with PS/2 mouse connector and cable included
7. One USB header for two optional USB ports connectors
8. Built-in standard IrDA TX/RX header
Miscellaneous
1.Baby AT form factor
2.Four
ISA slots and
four PCI slots
