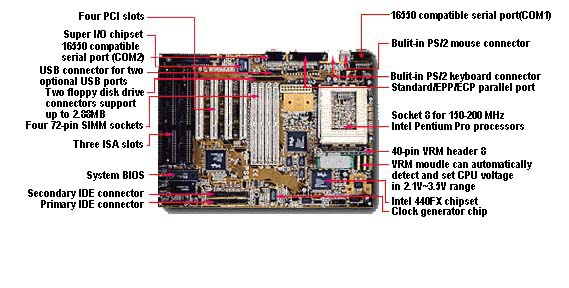

[ PS6 PentiumŪ Pro Processor Based ATX Mainboard With CPU SOFT MENUTM Technology ]
To deliver high
instant horsepower for a file server environment, the PS6 concurrently
incorporates the new Intel generation Pentium® Pro processor
and PCI Rev 2.1 I/O function. Like the Pentium®
processor, the Pentium Pro processor has a fully integrated first layer
8KB cache memory for both the data and instruction queues. It also has
256K or 512K of built-in second level cache to speed up data transfer
between the processor and main memory. The PS6 also supports the newest
serial standard, Universal Serial Bus with up to a 12Mb data transfer
rate to provide a single interface for the keyboard, mouse, and telecommunication
devices.
[
Specifications ]
CPU
1. Socket 8
for 150-200 MHz Intel Pentium Pro processors
2. BIOS incorporates SOFT MENUTM
to set CPU clock speed
3. VRM
module can automatically detect and set CPU voltage in 2.1V~3.5V range
4. Supports 60, 66 MHz CPU external clock speed
Chipset
1.Intel 440FX
chipset
2. Supports PCI Rev. 2.1
3. supports up to 512MB
Memory
1. Four
72-pin SIMM sockets
2. Supports EDO DRAM and FP DRAM
3. Supports symmetrical and asymmetrical DRAM types
Cache memory
1. Level 1 and Level 2 cache built into Pentium Pro Processor
System
BIOS
1.Award Plug
and Play BIOS
2. Supports Advanced Power Management
3. Supports DMI
Functions
1.One floppy
port connectors supporting up to 2.88MB floppy drive and 3 mode floppy
drive
2. Two channels of bus master IDE ports for up to four IDE devices (including
LS-120MB floppy drive)
3. Built-in Standard/EPP/ECP parallel port
connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 mouse and PS/2 keyboard ports connectors
6. Built-in standard IrDA TX/RX header and SB-LinkTM header
7. Built-in two USB ports connectors
Miscellaneous
1.ATX
form factor
2. Three
ISA slots and
four PCI slots
3. Supports keyboard Re-new fuse
