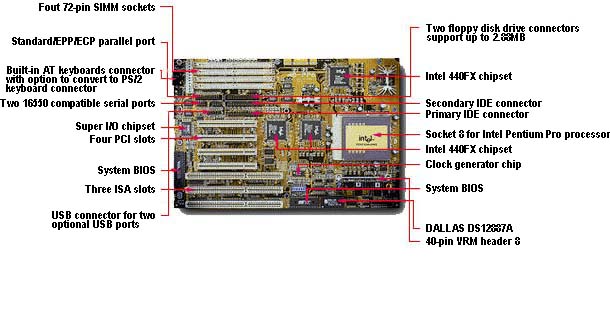

[ PP6 Pentium® Pro Processor Based Mainboard ]
Including
Intel's next generation 440FX chipset, the
PP6 provides a complete range of specifications for high-end file sever
environments. The PP6 concurrently incorporates Intel's new generation
Pentium® Pro processor and the PCI
Rev 2.1 I/O function. Like the Pentium® processor,
the Pentium Pro processor has a fully integrated first layer 8KB cache
memory for both the data and instruction queues. In addition, it also
has 256K or 512K of built-in second level cache to speed up data transfer
between the processor and main memory. With two USB ports, a fast Super
I/O chip, an EPP/ECP parallel port, and a Bus Master IDE interface, the
PP6 allows your PC to replaces the expensive minicomputer and workstations
with an economical budget.
[
Specifications ]
CPU
1.Socket 8
for 150-200MHz Intel Pentium Pro processors
2. VRM
module can automatically detect and set CPU voltage in 2.1V~3.5V range
3. upports 60, 66 MHz CPU external clock speeds
Chipset
1.Intel 440FX
chipset
2. Supports PCI Rev. 2.1
Memory
1.our 72-pin
SIMM sockets
2. Supports Burst EDO DRAM, EDO DRAM and FP DRAM
3. Supports symmetrical and asymmetrical DRAM types
4. Supports up to 512MB
Cache memory
1. Level
1 and Level 2 cache built into Pentium Pro Processor
System BIOS
1.Award Plug
and Play BIOS
2. Supports Advanced Power Management DMI
Functions
1.One floppy
port connector supporting up to 2.88MB floppy drive and 3 mode floppy
drive
2. Two channels
of bus master IDE ports connectors for up to four IDE devices (including
LS-120MB floppy drive)
3. One built-in Standard/EPP/ECP
parallel port
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in AT keyboard connector with option to convert to PS/2 keyboard
connector
6. Built-in PS/2 mouse header with PS/2 mouse connector and cable included
7. One USB header for two optional USB port connectors
Miscellaneous
1.Baby AT
form factor
2. Three
ISA slots and
four PCI slots
