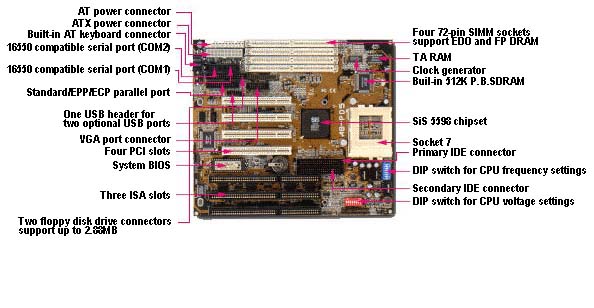

[ PD5N Pentium®
Processor Based All In One Mainboard ]
The PD5N is one of the best
price/performance Pentium® ½è processor-based all-in-one
mainboards. The PD5N is fully equipped with a SiS 5598
chipset, high performance PCI Rev. 2.1, and all of the
required specifications for PC 97 such as Ultra DMA/33 IDE
interface and ACPI power management functions. The SiS 5598 chipset implements synchronous and asynchronous PCI
operation to support up to a 75MHz bus clock speed for Cyrix processors. Applying advanced
circuit technology, the PD5N requires no extra on-board video display memory. With this
feature, the PD5N does not only save in system cost but also largely increases flexibility
when selecting appropriate display resolution. It is the best choice for Internet,
workstation, and multimedia environments.
[ Specifications
]
CPU
1.Employs switching type regulator to stabilize CPU operation
2. Implements DIP switches to adjust the frequency and voltage settings
3. Supports 50, 60, 66, 75, 83* MHZ CPU external clock speeds
4. Supports Pentium® ½è processors and Pentium® ½è processors with MMXTM
technology
5. Supports AMD-K5TM and AMD-K6TM processors
6. Supports Cyrix 6x86TM/ 6x86LTM and Cyrix 6x86MXTM
-PR150 ~ PR233 processors*
Chipset
1.SiS 5598 chipset
2. Supports Ultra DMA/33 IDE protocol
3. Supports Advanced Configuration and Power Interface (ACPI)
specification
Memory(DRAM)
1.Four 72-pin
SIMM sockets support EDO and FP
DRAM
Cache Memory
1.Built-in 512K P.B. SRAM
System BIOS
1.Award Plug and Play BIOS supports APM, DMI, and ACPI
2.Write-protect Anti-Virus function by AWARD BIOS
3. Year 2000 compliant
Graphic and
Video Accelerator
1.Built-in 64 bit GUI PCI chipset
2. Supports Video Scaling, Overlap
and Color Space Conversion
3.Supports DDC1 and DDC 2B specification
4. Video Memory: Shared System Memory
Multi I/O
Functions
1.One floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels of bus master IDE ports connectors for up to four IDE devices (including
LS-120MB floppy drive)
3. One built-in Standard/EPP/ECP parallel port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in standard IrDA TX/RX header
6. Built-in AT keyboard connector with option to convert to PS/2 keyboard connector
7. Built-in PS/2 mouse header with PS/2 mouse connector and cable included
8. One USB header for two optional USB port connectors
Miscellaneous
1.Baby AT form factor
2.Three ISA slots and four PCI
slots
3. Supports NEC Pc98 3-mode FDD format
