[AMD
Socket A Based ATX
Mainboard With Ultra DMA 100 & SoftMenuTMIII
Technology ]

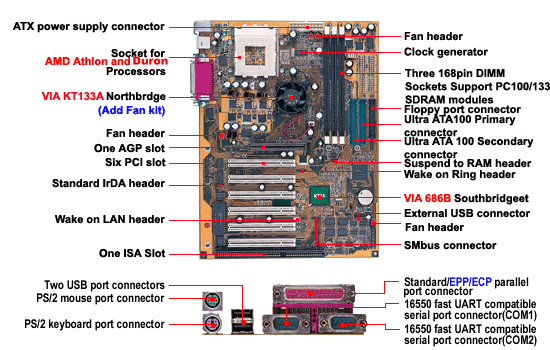

ABIT's Socket A
motherboard is now even better. Already offering 3 DIMM, 1 AGP, 1 ISA, and
6 PCI, the KT7A now also adds support for 200MHz and 266MHz FSB. The
KT7A has everything you could want in a top-of-the-line mainboard. If that
isn't enough, add in Ultra DMA 100 support and ABIT's SoftMenuTM
III. Your demands were heard, met and then surpassed with the KT7A.
[ Specifications
]
CPU
1. Supports AMD-K7 Duron 600MHZ-850MHZ or future 200MHz FSB
Socket A Processors
2. Supports AMD-K7 Athlon 700MHZ-1.2GHZ or 200/266MHz FSB
Socket A Processors
3. Supports 200/266 MHz Alpha EV6 bus for the AMD Athlon & Duron
Processors
Chipset
1. VIA
KT133A /VIA 686B
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 2X/4X
(Sideband)
4. Supports 100/133MHz Memory Bus Settings
Memory
1. Three 168-pin DIMM
sockets support PC100/PC133 SDRAM module
2. Supports up to 1.5 GB MAX. (8, 16, 32,
64, 128, 256, 512MB SDRAM)
System BIOS
1. SOFTMENUTM III
Technology to set CPU parameters
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus function by AWARD BIOS
Multi I/O Functions
1.
2 Bus Master IDE Ports supporting UDMA 33/66/100
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1x Floppy Port (up to 2.88MB)
4. 1x Parallel Port (EPP/ECP)
5. 2x Serial Ports
6. 2x USB Connectors
7. On board USB header
for Two extra USB channels
Miscellaneous
1. ATX form
factor
2. 1 AGP slot, 6 PCI slots and 1 ISA slots
3. Hardware monitoring - Including Fan speed,
Voltages, System environment temperature
4. Built-in
Wake on LAN/Wake on Modem
5. Built-in IrDA TX/RX header
6. One Thermal Sensor Cable Included
|
