[AMD
Socket A Based ATX
Mainboard With Ultra DMA 100 & SoftMenuTMIII
Technology
]

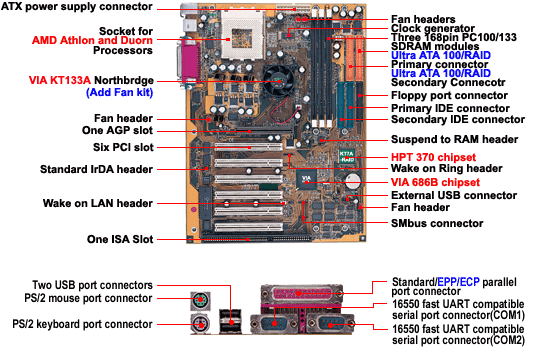

ABIT's Socket A
motherboard is now even better. Already offering 3 DIMM, 1 AGP, 1 ISA, and
6 PCI, the KT7A-RAID now also adds support for 200MHz and 266MHz FSB.
The KT7A-RAID has everything you could want in a top-of-the-line mainboard.
If that isn't enough, add in Ultra DMA 100 and RAID support and ABIT's
SoftMenuTM III. Your demands were heard, met and then surpassed
with the KT7A-RAID.
[ Specifications ]
CPU
1. Supports AMD-K7
Duron 600MHZ-850MHZ or future 200MHz FSB Socket A Processors
2. Supports
AMD-K7 Athlon 700MHZ-1.2GHZ or future 266MHz FSB Socket A Processors
3. Supports 200/266 MHz Alpha EV6 bus for the AMD Athlon & Duron
Processors
Chipset
1. VIA
KT133A /VIA 686B
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 2X/4X
(Sideband)
4. Supports 100/133MHz Memory Bus Settings
Ultra
DMA 100
1. High Point HTP370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Three 168-pin DIMM
sockets support PC100/PC133 SDRAM module
2. Supports up to 1.5 GB MAX. (8, 16, 32, 64,
128, 256, 512MB SDRAM)
System BIOS
1. SOFTMENUTM III
Technology to set CPU parameters
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. Two
Channels of Bus Master IDE Ports supporting up to four Ultra
DMA 33/66/100(up to 4 HDD devices)
2. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA
33/66/100
3. PS/2 Keyboard and PS/2 Mouse Connectors
4. 1x Floppy Port (up to 2.88MB)
5. 1x Parallel Port (EPP/ECP)
6. 2x Serial Ports
7. 2x USB Connectors
8. On board USB header
for Two extra USB channels
Miscellaneous
1. ATX form
factor
2. 1 AGP slot, 6 PCI
slots and 1 ISA slots
3. Hardware monitoring - Including Fan speed,
Voltages, System environment temperature
4. Built-in
Wake on LAN/Wake on Modem
5. Built-in IrDA TX/RX header |
