[AMD Socket A Based ATX Mainboard
With 4X AGP & SoftMenuTMIII Technology ]

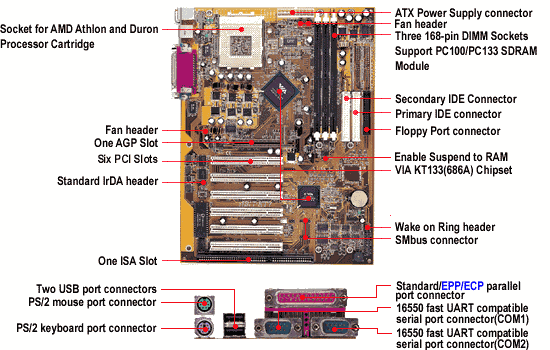

ABIT's highly anticipated Socket A motherboard has
arrived. With 3 DIMM, 1 AGP, 1 ISA, and 6 PCI, the KT7 has everything you could want in a
top-of-the-line mainboard. If that isn't enough, add in Ultra DMA 66 support, 200 MHz FSB
Processor support and ABIT's SoftMenuTM III. Your demands were heard, met and
then surpassed with the KT7.
[ Specifications
]
CPU
1. Supports AMD-K7 Athlon Socket A 200MHz FSB Processors
2. Supports AMD-K7 Duron Socket
A 200MHz FSB Processors
Chipset
1. VIA (KX133) /VIA 686A
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 2X/4X (Sideband)
4. Supports 100/133MHz Memory Bus Settings
Memory
1. Tree 168-pin DIMM sockets support PC100/PC133
SDRAM module
2. Supports up to 1.5 GB MAX. (8, 16, 32, 64, 128, 256, 512MB
SDRAM)
3. Supports ECC
System BIOS
1. SOFTMENUTM III Technology
to set CPU parameters
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000
Compliant
Multi I/O Functions
1. On board Bus Master IDE Ports supporting UDMA 33/66
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1x Floppy Port (up to 2.88MB)
4. 1x Parallel Port (EPP/ECP)
5. 2x Serial Ports
6. 2x USB Connectors
7. On board USB
header for Two extra USB channels
Miscellaneous
1. ATX
form factor
2. 1 AGP slot, 6 PCI slots and 1 ISA slots
3. Hardware monitoring - Including Fan speed, Voltages,
System environment temperature
4. Built-in Wake on
LAN/Wake on Modem
5. Built-in IrDA TX/RX header
6. One Thermal Sensor Cable Included |
