[ ABIT

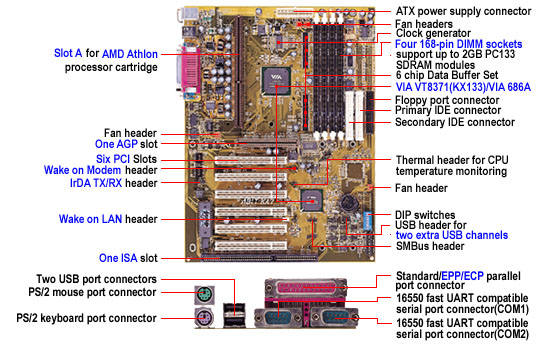

KA7 AMD Athlon Slot A Mainboard With
4 DIMM, 6 Data Buffers, 6 PCI & SOFT
MENUTMIII Technology ]
ABIT's
highly anticipated Athlon motherboard has arrived. With 4 DIMM, 6 Data
Buffers and 6 PCI technology, the KA7 has everything you could want in
a top-of-the-line mainboard. If that isn't enough, add in UDMA 66 support,
200 MHz FSB Processor support and ABIT's SoftMenuTM
technology. Your demands were heard, met and then surpassed with the KA7.
[
Specifications ]
CPU
1. Supports
AMD-K7 Athlon 200MHz FSB Processors
Chipset
1. VIA
VT8371(KX133) /VIA 686A
2. Supports
Advanced Configuration and Power Management Interface (ACPI)
3. Supports
AGP 2X/4X (Sideband) 3.3V device
4. Supports 100/133MHz Memory Bus Settings
Memory
1. Four
168-pin DIMM sockets support PC100/PC133
SDRAM module
2. Supports up to 2 GB MAX. (8, 16,
32, 64, 128, 256, 512MB SDRAM)
3. 6 chip Data Buffer Set
4. Supports
ECC
System
BIOS
1. SOFTMENUTM
III Technology
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. On
board Bus Master IDE Ports supporting UDMA 33/66
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1x Floppy
Port (up to 2.88MB)
4. 1x
Parallel Port (EPP/ECP)
5. 2x Serial
Ports
6. 2x USB Connectors
7. On
board USB header for Two extra USB channels
Miscellaneous
1.
ATX form factor
2. 1 AGP slot, 6 PCI
slots and 1 ISA slots
3. Built-in
Wake on LAN/Wake on Modem
4. Built-in
IrDA TX/RX header
5. One
Thermal Sensor Cable Included
|
