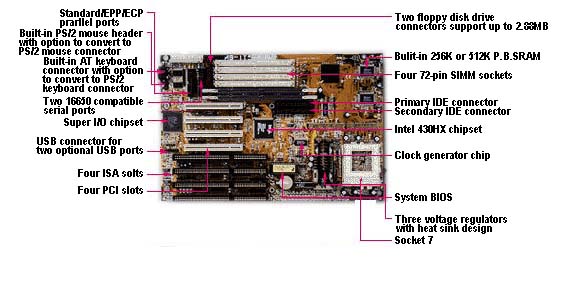

[ IT5H 586/686 Processor based Mainboard With CPU SOFT MENUTM Technology ]
What happened to
the mainboard when the user friendly trend swept the world of computers?
The manual setting of CPU parameters with jumpers and DIP switches is
an anomaly among Pentium® processors and Windows®
95! ABIT presents the world's first CPU Jumperless
mainboard that uses SOFT MENUTM,
a patented software technology to set CPU parameters from within the BIOS
CMOS setup utility. The IT5H includes Intel's 430HX
chipset and three voltage regulators to stabilize
CPU work. It also implements ECC, a DRAM checking algorithm which detects
and corrects memory errors on the fly without user intervention or disruption
of processing.
[
Specifications ]
CPU
1.Employs switching
type regulator to stabilize CPU operation
2. Supports
50, 55, 60, 66, 75*, 83* MHz CPU external
clock speeds
3. Supports
Pentium® processors and Pentium® processors
with MMXTM technology
4. Supports
AMD-K5TM and AMD-K6TM processors
5. Supports
Cyrix 6x86TM/6x86LTM and Cyrix 6x86MX TM
- PR150 ~ PR200 processors*
Chipset
1.Intel
430HX chipset
2. Supports
PCI Rev. 2.1
Cache
Memory
1.Built-in 512K P.B.
SRAM
Memory
(DRAM)
1.Two
168-pin DIMM
sockets
2. Four 72-pin
SIMM sockets
3. DIMM and
SIMM sockets support EDO and FP DRAM
4. Supports
ECC memory function
5. Supports
up to 512MB
System
BIOS
1.CPU SOFT
MENUTM eliminates the need for jumpers to set CPU parameters
2. Award Plug
and Play BIOS supports APM, DMI and ACPI
3. Write-protect
Anti-Virus function by AWARD BIOS
4. Year 2000
compliant
Multi
I/O functions
1.One floppy port
connectors supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels
of bus master IDE ports for up to four IDE devices (including LS-120MB
floppy drive)
3. One Standard/EPP/ECP
parallel port connector
4. Two built-in
16550 fast UART compatible serial ports connectors
5. Built-in
AT keyboard connector with option to convert to PS/2 keyboard connector
6. Built-in
PS/2 mouse header with PS/2 mouse connector and cable included
7. One USB
header for two optional USB ports connectors
Miscellaneous
1.AT
form factor
2. Four
ISA slots and
four PCI slots
3. Supports
keyboard Re-new fuse
4. Supports NEC PC98
3-mode FDD format
