[ CX6 Pentium® III AGP Based ATX Mainboard Supporting Ultra DMA 66/Direct RDRAM With CPU SOFTMENU^TM II Technology ]

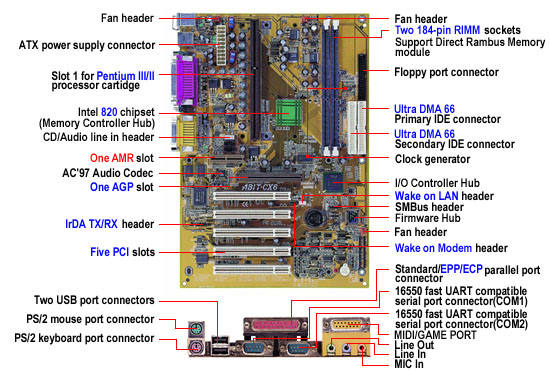

The ABIT CX6 is a Pentium^® III AGP based ATX mainboard supporting Ultra DMA 66/Direct RDRAM With ABIT's patented CPU SoftMenu^TMII technology and is considered one of ABIT's premier boards based on the Intel 820 chipset. Based on a completely new chipset architecture, the CX6 with the Intel 820 chipset supports Advanced Configuration and Power Management Interface (ACPI) and AGP 1X/2X/4X (Sideband) and 100/133MHz Front Side Bus settings. Featuring the latest in memory technology, the CX6 supports 2 184-pin RIMM sockets for Direct Rambus Memory modules for up to 1GB MAX. (64, 128, 256MB) with 600, 700, 800MHz Direct Rambus Channels supporting up to four Ultra DMA 66 devices. As well as support for STR (Suspend to DRAM). The CX6 has 1 Universal AGP slot, 5 PCI slots and 1 AMR slot with Hardware Monitoring of fan speeds, voltages, system environment temperature and one thermal header for a CPU or other temperature monitoring.

[ Specifications ]

CPU
1. Supports Intel Pentium^® III 450~800 MHz processor cartridge based on 100 & 133 MHz FSB
2. Supports Intel Pentium^® II 350~450 MHz processor cartridge based on 100 MHz FSB
3. Reserves support for future Intel Pentium® III processors

Chipset
1. Intel^® 820 chipset
2. Supports 100/133MHz (Front Side Bus)
3. Supports Advanced Configuration and Power Management Interface (ACPI)
4. Supports AGP 1X/2X/4X (Sideband) 1.5V/3.3V device

Memory
1. Two 184-pin RIMM sockets support Direct Rambus Memory module
2. Supports up to 1GB MAX. (64, 96, 128, 256MB)
3. Supports ECC

Audio
1. AC'97 Digital Audio controller integrated
2. AC'97 Audio CODEC on board
3. Audio driver included

System BIOS
1. SOFTMENU^TM II eliminates the need for jumpers or DIP switches to set CPU parameters.
2. Award Plug and Play BIOS supports APM and ACPI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant

Multi I/O Functions
1. 2x Channels of Bus Master IDE Ports supporting up to four Ultra DMA 66 devices(Reserves support for future IDE specifications)
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1x Floppy Port (up to 2.88MB)
4. 1x Parallel Port (EPP/ECP)
5. 2x Serial Ports
6. 2x USB Connectors
7. Audio connector (Line-in, Line-out, Mic-in, and Game Port)

Miscellaneous
1. Support STR(Suspend to DRAM)
2. ATX form factor
3. 1 Universal AGP slot, 5 PCI slots and 1AMR slot
4. Hardware monitoring - Including fan speed, voltages, CPU and System temperature and one thermal header for other devices temperature monitoring
5. Keyboard and Mouse Power On
5. Built-in Wake on LAN/Wake on Modem header
6. One Thermal Sensor Cable Included
7. PC99 Compliant
