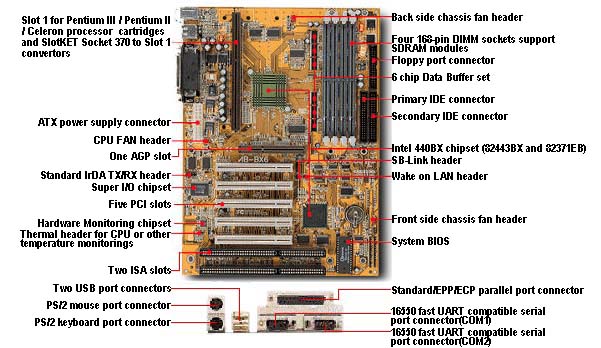

[ BX6(Rev 2.0) PentiumŽIII AGP Based ATX Mainboard With CPU SOFT MENUTM II Technology ]
This is ABIT's premier, all around full-featured,
full spec 440BX motherboard for SOHO or multimedia environments. It has
soffical support for Intel's newest Pentium®III
450 ~ 500MHz and Pentium®II
350 ~ 450MHz processors running on the 100MHz system bus as well as being
backwards compatible to support Pentium®II
233 ~ 333MHz processors. It comes with WinBond chipset for hardware monitoring
of fan speed, voltages, and system temperature capabilities. The BX6 Rev.
2.0 comes with Four DIMM sockets enhanced by the 6 chip Data Buffer set,
providing enough stable main memory capacity for any business computing,
3D gaming, multimedia, applications and CAD/CAM type applications.
[ Specifications ]
CPU
1.Supports Pentium®
III 450~500MHz processor cartridge
2.Supports Pentium®
II 233~450MHz processor cartridge
3.Supports Celeron®
266~400MHz processor cartridge
4.Supports future Slot 1 processors
Chipset
1. Intel® 440BX
chipset (82443BX and 82371EB)
2.Supports Ultra DMA/33 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports AGP 66/133 MHz (Sideband)
3.3V device
Memory
1.Four 168-pin DIMM sockets support SDRAM modules
2.Supports up to 1GB max (8, 16, 32, 64,
128,256MB SDRAM)
3.Has 6 chip Data Buffer set
4.ECC support
System BIOS
1.SOFT MENUTM II eliminates the need for
jumpers or DIP switches to set CPU parameters
2. Award Plug and Play BIOS supports APM,
DMI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Functions
1.One floppy port connector supporting up to 2.88MB floppy drive and 3
mode floppy drive
2. Two channels of bus master IDE ports connectors for up to four IDE
devices (Including LS-120MB floppy drive)
3. One built-in Standard/EPP/ECP parallel
port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 keyboard and PS/2 mouse port connectors
6. Built-in standard IrDA TX/RX header
7. Built-in two USB port connectors
8. Built-in Wake on LAN header
9. Built-in SB-LinkTM header
Miscellaneous
1. ATX form factor
2. One AGP slot, Five
PCI slots and Two ISA slots
3. Hardware monitoring - Including
fan speed, voltages, system environment temperature, and Thermal
header for CPU or other temperature monitoring
4. Keyboard and Mouse Wake Up
5. Dimensions : 305*220mm
