[ Pentium® III Based ATX Mainboard With Ultra DMA 66/100 ,
SoftMenuTM III & RAID 0/1 Technology ]

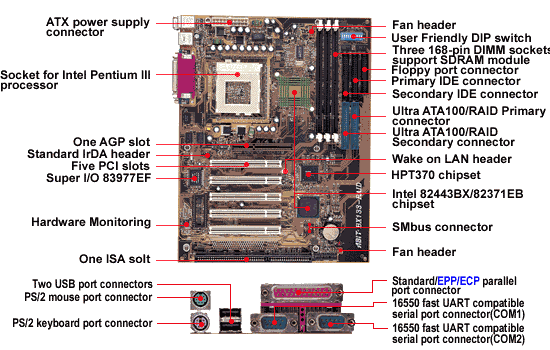

The BX133-RAID is ABIT's "Ultimate BX
Mainboard," supporting all Intel Pentium®III and Celeron socket-based
processors. The BX133-RAID features today's most advanced hardware specifications,
including an onboard UDMA 33/66/100 and RAID controller, plus SoftMenuTMIII
for setting CPU parameters. SoftMenuTMIII provides ABIT's
customers the easiest and safest environment to achieve ultimate performance. With 2
USB channels, 3 DIMM slots, AGP suport, and hardware monitoring, the BX133-RAID gives you
the absolute best solution for the BX chipset.
[ Specifications
]
CPU
1. Supports Intel Pentium® III Socket based
processor
2. Supports Intel Celeron® Socket based processor
3. Reserves support for future Intel Pentium® III/Celeron processor
Chipset
1. Intel®440BX
chipset (82443BX and 82371EB)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X (Sideband)3.3V
device
Ultra DMA 100
1. High Point HTP370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Three
168-pin DIMM sockets support SDRAM module
2. Supports up to 1GB MAX. (8, 16, 32, 64, 128,256MB SDRAM)
3. Supports ECC
System BIOS
1. SoftMenuTMIII Patent
Technology and DIP switches to set CPU parameters
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. Two Channels of Bus Master IDE
Ports supporting up to four Ultra DMA 33/66/100(up to 4 HDD devices)
2. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33
devices( up to 4
HDD devices)
3. PS/2 Keyboard and PS/2 Mouse Connectors
4. 1 Floppy Port (up to 2.88MB)
5. 1 Parallel Port (EPP/ECP)
6. 2 Serial Ports
7. 2 USB Connectors
Miscellaneous
1. 1 AGP slot, 5 PCI slots and 1 ISA slot
2. Hardware
monitoring - Including Fan
speed, Voltages, System environment temperature
3.
Keyboard/Mouse/Password and Hot Key multifunction Power On.
4. Built-in Wake on LAN/Wake on
Ring header
5. Built-in IrDA TX/RX header |
