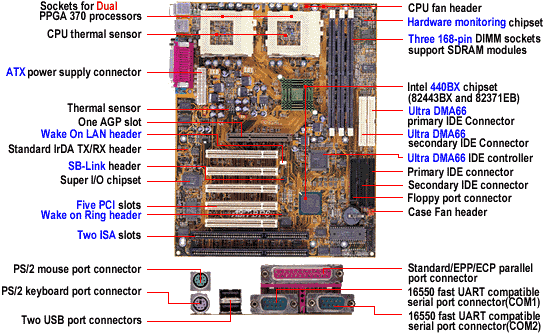

[ BP6 Dual Socket 370 AGP Based ATX Mainboard With CPU SOFT MENU ^TMII Technology ]
ABIT announces the release of the Worlds First Dual Socket 370 motherboard, the BP6. The ABIT BP6 doubly defies the limitations of Intel's BX chipset by offering both Dual PPGA370 ^{CPUs and UDMA/66,once again proving that with ABIT, anything is possible.}

[ Specifications ]

CPU
1. Supports Dual Socket 370 processors (Based on 66/100MHz clock)

Chipset
1. Intel^®440BX (66/100MHz) AGPset
2. Ultra DMA66 IDE controller supports Four Ultra DMA66 devices
3. Supports Ultra DMA/33 IDE protocol
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports AGP 1X/2X devices

Memory
1. Three 168-pin DIMM sockets support SDRAM module
2. Supports up to 768MB(8, 16, 32, 64, 128,256MB SDRAM)
3. Supports ECC

System BIOS
1.CPU SOFT MENU^TM II eliminates the need for jumpers or DIP switches needed to set CPU parameters
2.Award Plug and Play BIOS supports APM and DMI
3.Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant

Multi I/O Functions
1. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices
2. Two Channels of Bus Master IDE Ports supporting up to four Ultra DMA 33 devices
3. PS/2 Keyboard and PS/2 Mouse Connectors
4. One Floppy Port (up to 2.88MB)
5. One Parallel Port (EPP/ECP)
6. Two Serial Ports
7. Two USB Connectors
8. Built-in IrDA TX/RX header

Miscellaneous
1. ATX form factor
2. One AGP slot, Five PCI slots and Two ISA slots
3. Hardware monitoring - Including fan speed, voltages, System environment temperature
4. Keyboard and Mouse Power On
5. Built-in Wake on LAN header
6. Built-in Wake on Ring header
7. Dimensions : 305*240mm
