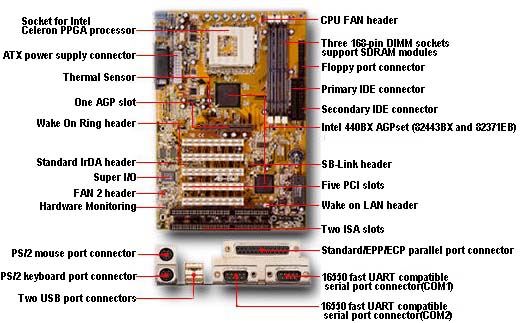

[ BM6 Socket 370 AGP Based ATX Mainboard With CPU SOFT MENUTM II Technology ]
From the great tradition of the BX6 and the BH6, ABIT's
latest, the BM6 was also designed with Intel's performance 440BX chipset.
Added to support Intel's latest CPU specification-Socket 370, the BM6
will be the first choice, for the high-end solution of the Basic PC segment.
[
Specifications ]
CPU
1.Supports Socket
370 Intel® Celeron® processor (Based on 66/100MHz
clock)
Chipset
1. Intel®440BX
AGPset (82443BX and 82371EB)
2.Supports Ultra DMA/33 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports AGP 66MHz/133MHz
(Sideband)
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2.Supports up to 768MB MAX. (8, 16, 32, 64,
128,256MB SDRAM)
3.ECC support
System
BIOS
1.CPU SOFT MENUTM
II eliminates the need for jumpers or DIP switches needed to set
CPU parameters
2.Award Plug and Play BIOS supports APM,
DMI
3.Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Functions
1. One Floppy port connector supporting
up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels of bus master IDE ports connectors for up to four IDE
devices
3. One Built-in Standard/EPP/ECP parallel
port connector
4. Two Built-in 16550 fast UART compatible serial port connectors
5. Built-in PS/2 keyboard and PS/2 mouse ports connectors
6. Built-in two USB port connectors
7. Built-in standard IrDA TX/RX header
8. Built-in Wake On LAN header
9. Built-in SB-LinkTM header
10. Built-in Wake on Ring header
Miscellaneous
1. ATX
form factor
2. One AGP slot, Five PCI slots and Two
ISA slots
3. Hardware monitoring - Included fan speed, voltages,
CPU and system environment
temperature
4. Supports Keyboard and Mouse Wake Up
5. Dimensions : 305*210mm
