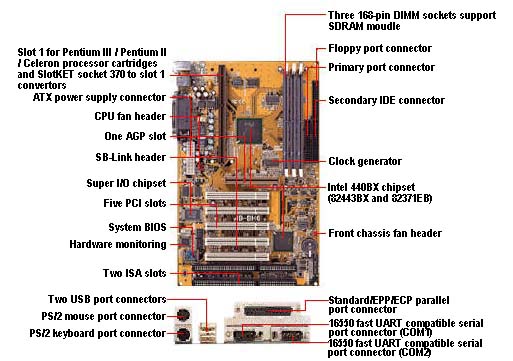

ABIT's BH6 is the Intel 440BX based mainboard for SOHO or multimedia environments. It includes One AGP, Five PCI and Two ISA to handle all of your expansion needs. It also has official support for Intel's newest Pentium^® II 350 ~ 450MHz processors running on the 100MHz system bus as well as being backwards compatible to support Pentium^® II 233 ~ 333MHz processors. It has all the specifications for PC97 such as Ultra DMA/33 support, ACPI power management, AGP spec Rev. 1.0 for improved 3D graphics performance at a lower cost, infrared support and comes with hardware monitoring of fan speed, voltages, and system temperature capabilities. The BH6 comes with Three DIMM sockets providing enough main memory capacity for business computing, 3D gaming, multimedia applications and CAD/CAM applications. The BH6 also implements Soft Menu^TM II technology that eliminates all jumpers on the mainboard that set CPU parameters, allowing end-users to easily and correctly install or upgrade their own Pentium^®II processor with MMX^TM technology.

[ Specifications ]

CPU
1_{.Supports Pentium}^®_{III 450~500 MHz processor cartridge}.
2.Supports Pentium^®II 350 ~ 450 MHz processor cartridge (Based on 100MHz clock)
3.Supports Pentium^®II 233 ~ 333 MHz processor cartridge (Based on 66MHz clock)
4.Supports Celeron^®266 ~ 333 MHz processor cartridge (Based on 66MHz clock)

Chipset
1.Intel 440BX chipset (82443BX and 82371EB)
2.Supports Ultra DMA/33 IDE protocol
3.Supports Advanced Configuration and Power Management Interface (ACPI)
4.Supports AGP 66MHz/133MHz (Sideband) 3.3V device

Memory
1.Three 168-pin DIMM sockets support SDRAM module
2.Supports up to 384MB MAX. (8, 16, 32, 64, 128MB SDRAM)
3.ECC support

Cache Memory
1.Level 1 and Level 2 cache built into Intel Pentium^®II processor cartridge

System BIOS
1.CPU SOFT MENU^TM II eliminates the need for jumpers or DIP switches needed to set CPU parameters
2.Award Plug and Play BIOS supports APM, DMI
3.BIOS setup support 66, 75, 83*, 100, 112*,124* and 133*MHz external clock
4.Write-Protect Anti-Virus function by AWARD BIOS
5.Year 2000 Compliant

Multi I/O Functions
1.One Floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels of bus master IDE ports connectors for up to four IDE devices (Including LS-120MB floppy drive )
3. One Built-in Standard/EPP/ECP parallel port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 keyboard and PS/2 mouse ports connectors
6. Built-in standard IrDA TX/RX header
7.Built-in two USB ports connectors
8. SB-Link^TM header
9. Wake On LAN header

Miscellaneous
1.ATX form factor
2.One AGP slot, Five PCI slots and Two ISA slots
3.Hardware monitoring -Included fan speed, voltages, and system environment temperature
4.Dimensions : 305*190mm
