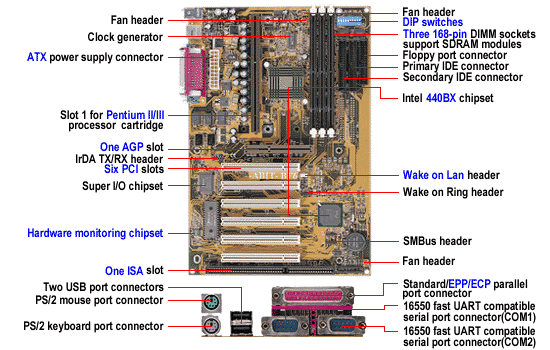

[ BF6
Pentium®III AGP Based
ATX Mainboard With
SoftMenu TMIII
]
The BF6 is a next step in the ABIT generation of famous
BX motherboards. ABIT has adopted future market needs and made great improvements
to create "an Ultimate BX Mainboard". In addition, there are more advanced
hardware specifications with two functions for setting CPU parameters,
BIOS SoftMenuTMIII and DIP Switches. The BF6 increases ABIT's popular
advanced Jumperless technology, SoftMenuTMIII which provides ABIT's
customers the easiest and safest environment to achieve ultimate performance.
[
Specifications ]
CPU
1. Supports Intel Pentium®
III 450~700 MHz processor cartridge
2. Supports Intel Pentium®
II 233~450 MHz processor cartridge
3. Supports Intel CeleronTM
266~533MHz processor cartridge
Chipset
1. Intel®440BX
chipset (82443BX and 82371EB)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X
(Sideband)3.3V device
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2. Supports up to 768MB MAX. (8, 16, 32,
64, 128,256MB SDRAM)
3. Supports
ECC
System
BIOS
1. SOFT MENUTM
III or DIP switches needed to set CPU parameters
2. Award Plug and Play BIOS version 6.0
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi
I/O Functions
1. Two Channels of Bus Master IDE Ports
supporting up to four Ultra DMA 33 devices
2. PS/2 Keyboard
and PS/2 Mouse connectors
3. 1x Floppy
Port (up to 2.88MB)
4. 1x Parallel
Port (EPP/ECP)
5. 2x Serial
Ports
6. 2x USB Connectors
Miscellaneous
1. 1
AGP slot, 6 PCI slots and 1 ISA
slot
2. Hardware monitoring
3. Keyboard/Mouse/Password
and Hot Key multifunction Power On.
4. Built-in Wake on LAN/Wake on Ring
header
5. One Thermal sensor
Cable Included
6. PC99 Colour connectors
7. Dimensions : 305*200mm
|
