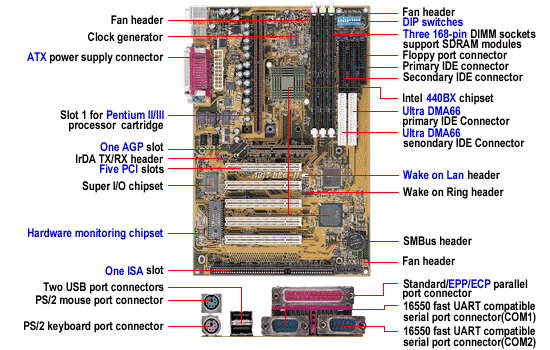

[ BE6-II
Pentium®III AGP Based
Ultra DMA 66 ATX
Mainboard With SoftMenu
TMIII
]
The BE6-II is the next generation of ABIT's famous BE6
motherboard. ABIT has adopted future market needs and made great improvements
to create "an Ultimate BX Mainboard". In addition, there are more advanced
hardware specifications with the BE6-II including an UDMA 66 controller
and two functions for setting CPU parameters, BIOS SoftMenuTMIII and DIP
Switches. The BE6-II increases ABIT's popular advanced Jumperless technology,
SoftMenuTMIII which provides ABIT's customers the easiest and safest environment
to achieve ultimate performance.
[
Specifications ]
CPU
1. Supports Intel Pentium®
III 450~700 MHz processor cartridge
2. Supports Intel Pentium®
II 233~450 MHz processor cartridge
3. Supports Intel CeleronTM
266~533MHz processor
Chipset
1. Intel®440BX
chipset (82443BX and 82371EB)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X
(Sideband)3.3V device
4. High Point HPT366
chipset supports Ultra DMA 66
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2. Supports up to 768MB MAX. (8, 16, 32,
64, 128,256MB SDRAM)
3. Supports
ECC
System
BIOS
1. SOFT MENUTM
III or DIP switches to set CPU parameters
2. Award Plug and Play BIOS version 6.0
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. Two Channels of Bus Master IDE Ports
supporting up to four Ultra DMA 33/66 devices
2. Two Channels of Bus Master IDE Ports
supporting up to four Ultra DMA 33 devices
3. PS/2 Keyboard
and PS/2 Mouse Connectors
4. 1x Floppy
Port (up to 2.88MB)
5. 1x Parallel
Port (EPP/ECP)
6. 2x Serial
Ports
7. 2x USB Connectors
Miscellaneous
1. 1
AGP slot, 5 PCI slots and 1 ISA
slot
2. Hardware monitoring
3. Keyboard/Mouse/Password
and Hot Key multifunction Power On.
4. Built-in Wake on LAN/Wake on Ring
header
5. Built-in IrDA TX/RX header
5.
One Thermal Sensor Cable Included
6. PC99 Colour connectors
7. Dimensions : 305*200mm
|
