[ BE6
Pentium®III AGP Based
ATX Mainboard Supporting Ultra
DMA66 IDE Protocol & With CPU
SOFTMENUTMII
Technology ]

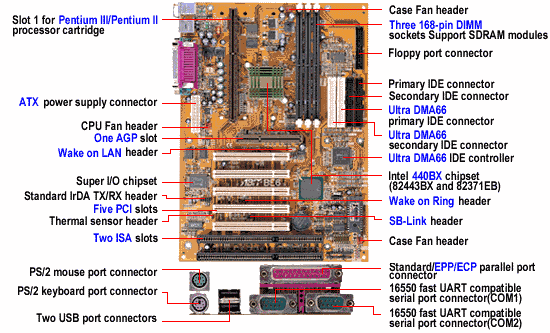

ABIT introduces their latest BX chipset, ATX based SLOT
1 motherboard, supporting the Ultra DMA/66 IDE Protocol and SoftMENUTM
II technology, the BE6 with all the great features of the BH6 and including
UDMA/66, ABIT shows you the meaning of the slogan; "Yes, It's Possible!"
[
Specifications ]
CPU
1. Supports Intel Pentium®
III 450~550MHz processor cartridge
2. Supports Intel Pentium®
II 233~450MHz processor cartridge
3. Supports Intel CeleronTM
266~466MHz processor
Chipset
1. Intel®440BX
chipset (82443BX and 82371EB)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X
(Sideband)3.3V device
Memory
1. Three 168-pin
DIMM sockets support SDRAM module
2. Supports up to 768MB MAX. (8, 16, 32,
64, 128,256MB SDRAM)
3. Supports
ECC
System
BIOS
1. CPU SOFT MENUTM
II eliminates the need for jumpers or DIP switches to set CPU parameters
2. Award Plug and Play BIOS supports APM,
DMI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. Two channels
of bus Master IDE Ports supporting up to four Ultra DMA 33/66 devices
2. Two channels of bus Master IDE Ports supporting up to four Ultra DMA
33 devices
3. PS/2 Keyboard
and PS/2 Mouse Connectors
4. One Floppy
Port (up to 2.88MB)
5. One Parallel
Port (EPP/ECP)
6. Two Serial
Ports
7. Two USB
Connectors
8. Built-in IrDA TX/RX
header
Miscellaneous
1.
ATX form
factor
2. One AGP slot, Five PCI slots and Two
ISA slots
3. Hardware monitoring - Including fan speed, voltages,
System environment temperature, and one Thermal header
for CPU or other temperature monitoring
4. Keyboard
and Mouse Power On
5. Built-in Wake on LAN header
6. Built-in Wake on Ring header
7. One Thermal Sensor
Cable Included
8. Dimensions : 305*210mm
|
