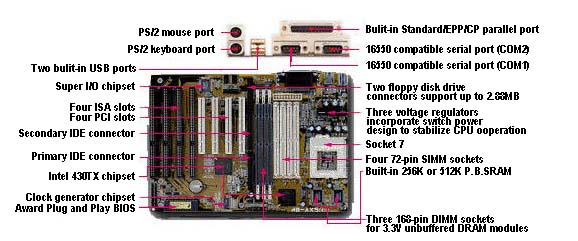

Based on Intel's 430TX chipset, the AX5 is uniquely designed for file servers, workstations and professional users. The AX5 provides an abundant supply of main memory, IDE interface, and high performance PCI Rev. 2.1. A combination of three 168-pin DIMM and four 72-pin SIMM sockets fulfils the memory hungry requirement of high-end computing environments. The 168-pin DIMM sockets support Synchronous, FP, and EDO DRAM. The AX5 also implements SOFT MENU^TM, a leading technology that eliminates all jumpers on the mainboard that set CPU parameters. With SOFT MENU end-users are able to use software to easily and correctly install their own CPU, enabling them to upgrade to a Pentium^® processor with MMX^TM technology, AMD-K6^TM processor, or Cyrix 6x86MX^TM processor.

[ Specifications ]

CPU
1. Employs switching type regulator to stabilize CPU operation
2. Supports 50, 55, 60, 66, 75*, 83* MHz CPU external clock speeds
3. Supports Intel Pentium^® processors and Pentium^® processors with MMX technology
4. Supports AMD-K6^TM and AMD-K5^TM processors
5. Supports Cyrix 6x86^TM/ 6x86L^TM processors and Cyrix 6x86MX^TM PR150~PR233 processors
6. Supports IDT WinChip C6 150-180MHz processors

Chipset
1.Intel 430TX chipset (MTXC and PIIX4 chips)
2. Supports Ultra DMA/33 IDE protocol
3. Supports Advanced Configuration and Power Interface (ACPI) specification
4. Supports OS directed power management (Windows^® 95 soft power off)
5. Supports PCI Rev. 2.1

Memory (DRAM)
1. Three 168-pin DIMM sockets for 3.3V unbuffered DRAM modules
2. DIMM sockets support SDRAM, EDO and FP DRAM
3. Four 72-pin SIMM sockets
4. SIMM sockets support EDO and FP DRAM
5. Supports 4MB to 256MB memory sizes

L2 Cache Memory
1. Built-in 512K P.B. SRAM

System BIOS
1.CPU SoftMenu^TM eliminates the need for jumpers or DIP switches to set CPU parameters
2. Award Plug and Play BIOS support APM, DMI, and ACPI
3. Write-protect Anti-Virus function by AWARD BIOS
4. Year 2000 compliant

Multi I/O functions
1.One floppy port connector supporting up to 2.88MB floppy drive and 3 mode floppy drive
2. Two channels of bus master IDE ports for up to four IDE devices (including LS-120MB floppy drive)
3. Built-in Standard/EPP/ECP parallel port connector
4. Two built-in 16550 fast UART compatible serial ports connectors
5. Built-in PS/2 mouse and PS/2 keyboard ports connectors
6. Two built-in USB ports connectors
7. Built-in standard IrDA Tx/RX header

Miscellaneous
1.Baby ATX form factor
2. Four ISA slots and four PCI slots
3. Supports keyboard Re-new fuse
