[ Dual FC-PGA Socket Based Mainboard Supporting 133 MHz FSB & 4X AGP With Ultra DMA 66/100 , SoftMenuTMIII & RAID 0/1
Technology ]

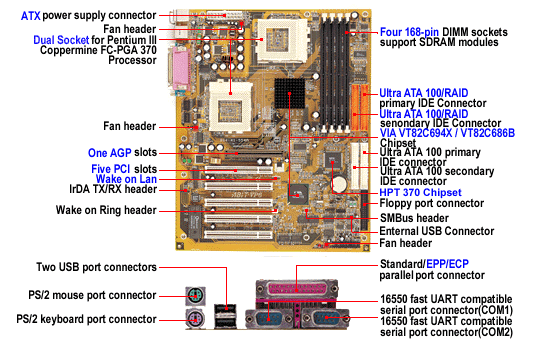

The VP6 is the next generation of
ABIT's famous dual processor motherboards. The VP6 includes the High Point
370 Controller. This allows for UDMA 100 support as well as for RAID. The
VP6 utilises the latest SoftMenuTMIII technology. SoftMenuTMIII in conjunction
with dual processing power ensures the ultimate in performance, the ultimate
in stability.
[ Specifications
]
CPU
1. Supports Pentium®III Coppermine FC-PGA 370 processor (Based on
100/133MHz clock)
Chipset
1. VIA chipset (VT82C694X and VT82C686B)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X/4X (Sideband) 3.3V device
Ultra DMA 100
1. High Point HPT370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Four 168-pin DIMM sockets support SDRAM
module
2. Supports up to 2 GB MAX. (8,
16, 32, 64, 128, 256,512MB SDRAM)
System BIOS
1. SoftMenuTMIII to set CPU parameters
2. Award Plug and Play BIOS supports APM and DMI
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. 2 Channels of Bus Master IDE Ports support Ultra DMA 33/66/100(up
to 4 HDD devices)
2. 2 Channels of Bus Master IDE Ports supporting Ultra DMA 33/66/100
3. PS/2 Keyboard and PS/2 Mouse Connectors
4. 1x Floppy Port (up to 2.88MB)
5. 1x Parallel Port (EPP/ECP)
6. 2x Serial Ports
7. 2x USB Connectors
8. On board USB header for two extra USB channels
Miscellaneous
1. ATX form factor
2.1 AGP slot, 5 PCI slots
3. Hardware monitoring – Including
Fan speed, Voltages, System environment temperature and one Thermal header for CPU
or other temperature monitoring.
4. Built-in Wake on LAN/Wake on Ring header
|
