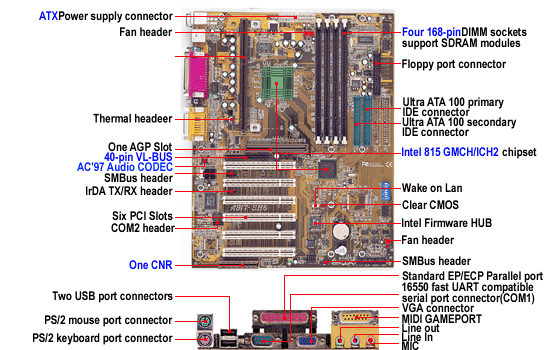

[ SH6
Pentium®III 815E Based
ATX Mainboard With SoftMenu™III
Technology ]
The SH6 is the only Slot 1 motherboard
available for the i815. The SH6 includes integrated audio and graphics features
such as AC'97, 2X 3D Graphics Acceleration as well as an AGP Slot and a
CNR Slot. With a 133MHz FSB, Ultra UDMA 100 support for up to 4 IDE devices,
AIMM module support, AGP4X and SoftMenu™ III, the SH6 is loaded with
power.
[
Specifications ]
CPU
1. Supports Intel Pentium® II/!!! slot1 processor up to 1GHz based on
100MHz & 133MHz FSB
2. Supports Intel Celeron slot1 processor up to 733Mhz based on 66MHz
FSB
Chipset
1. Intel 815E (ICH2) chipset
2. Supports 66/100/133MHz(Front Side Bus)
3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V
device.
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode.
Graphics
1. Chipset
integrated AGP 2X 3D graphics acceleration.
2. Support AIMM (AGP In-line Memory Module)
Memory
1. Four 168-pin DIMM sockets support SDRAM module
2. Supports up to 512MB MAX. ( 64, 128,256MB
SDRAM)
3. Support 100MHz,133MHz SDRAM interface
Audio
1. AC'97 2-channel Audio CODEC on board
2. Audio driver included
System BIOS
1. CPU SOFT MENU™III technology
and DIP switched function.
2. Award Plug and Play BIOS supports APM,
DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.
Multi I/O Functions
1. 2 channels bus Master IDE Ports support
Ultra DMA 33/66/100 (up to 4 devices)
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8.1 standard 15 pin VGA connector.
9. Audio connector (Line-in, Line-out, Mic-in,
and Game Port)
Miscellaneous
1. ATX form factor
2. 1 Universal AGP slot, 6 PCI slots and 1CNR slot
3. Hardware Monitoring - Including Fan speed, Voltages, CPU and System
temperature and one thermal header for other devices temperature monitoring
4. Keyboard and Mouse Power On
5. Built-in Wake on LAN / Wake on Modem header
6. Digital Video out interface supports digital
display or TV out (Option)
7. Built-in
IrDA TX/RX header
|
