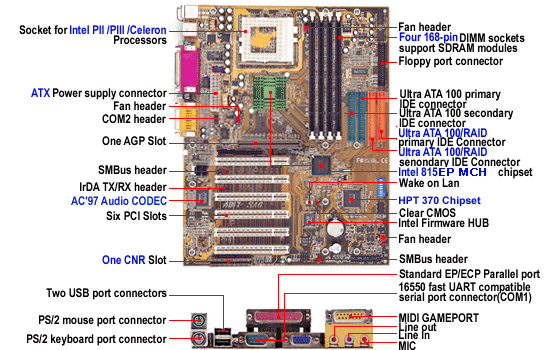

[ SA6R
815EP Based Socket ATX Mainboard with
IDE RAID Function ]
The SA6R is the latest i815 offering
from ABIT. The SA6R includes integrated audio and graphics features such
as AC'97, as well as an AGP Slot and a CNR Slot.
With a 133MHz FSB, Ultra UDMA 100 support for up to 8 IDE devices, AIMM
module support, RAID 0/1/0+1 and SoftMenu™ III, the SA6R is loaded
with power.
[
Specifications ]
CPU
1. Supports Intel PentiumŽ II/!!! up to 1Ghz socket processor based on
100 & 133 MHz FSB
2. Supports Intel CeleronŽ up to 733Mhz socket processor based on 66 MHz
FSB
3. Reserves support for future Intel PentiumŽ III/ Celeron socket processor
Chipset
1. Intel 815EP (ICH2) chipset
2. Supports 66/100/133MHz(Front Side Bus)
3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V
device.
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33
mode.
Ultra
DMA 100/RAID
1. High Point HPT370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Four 168-pin DIMM sockets support SDRAM module
2. Supports up to 512MB MAX. ( 64, 128,256MB
SDRAM)
3. Support 100MHz,133MHz SDRAM interface
Audio
1. AC'97 2-channel Audio CODEC on board
2. Audio driver included
System BIOS
1. CPU SOFT MENU™III technology
and DIP switche funtion.
2. Award Plug and Play BIOS supports APM,
DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.
Multi I/O Functions
1. 4 channels bus Master IDE Ports support
Ultra DMA 33/66/100 (up to 4 devices)
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8. Audio connector (Line-in, Line-out, Mic-in,
and Game Port)
Miscellaneous
1. ATX form factor
2. 1 Universal AGP slot, 6 PCI slots and 1CNR slot
3. Hardware Monitoring - Including Fan speed, Voltages, CPU and System
temperature and one thermal header for other devices temperature monitoring
4. Keyboard and Mouse Power On
5. Built-in Wake on Lan / Wake on Modem header
6.
Built-in
IrDA TX/RX header
|
