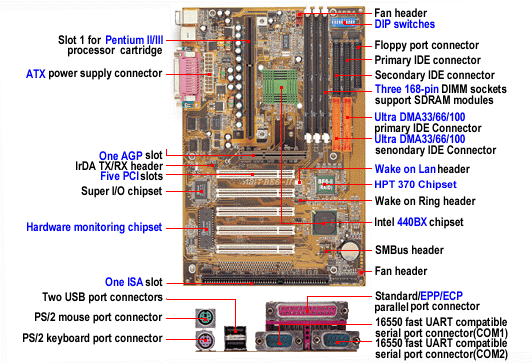

[ BE6-II V2.0 Pentium®III
ATX Mainboard Supports Ultra DMA 66/100
& RAID Technology ]
The BE6-II V2.0 is the next generation of ABIT's
famous BE6-II motherboard. The BE6-II V2.0 includes the High Point 370 Controller. This
allows for UDMA 100 support as well as for RAID. The BE6-II V2.0 utilises the latest
SoftMenuTM III technology. SoftMenuTM III ensures the ultimate in performance, the
ultimate in stability.
[ Specifications
]
CPU
1. Supports Intel Pentium® III 450~1GHz
processor cartridge based on 100MHzFSB
2. Supports Intel Pentium® II 233~450 MHz
processor cartridge based on 66/100MHzFSB
3. Supports Intel CeleronTM
266~533MHz processor based on 66MHzFSB
4. Reserves support for future Intel Pentium® III processors
Chipset
1. Intel®440BX
chipset (82443BX and 82371EB)
2. Supports Advanced Configuration and Power Management Interface (ACPI)
3. Supports AGP 1X/2X (Sideband)3.3V device
Ultra DMA
100
1. High Point HTP370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)
Memory
1. Three 168-pin DIMM
sockets support SDRAM module
2. Supports up to 768MB MAX. (8, 16, 32, 64, 128,256MB SDRAM)
3. Supports ECC
System BIOS
1. SOFT MENUTM III or
DIP switches to set CPU parameters
2. Award Plug and Play BIOS version 6.0
3. Write-Protect Anti-Virus function by AWARD BIOS
4. Year 2000 Compliant
Multi I/O Functions
1. Two Channels of Bus Master IDE Ports supporting up
to four Ultra DMA 33/66/100 devices
2. Two Channels of Bus Master IDE Ports supporting up
to four Ultra DMA 33 devices
3. PS/2 Keyboard and PS/2 Mouse
Connectors
4. 1x Floppy Port (up to 2.88MB)
5. 1x Parallel Port (EPP/ECP)
6. 2x Serial Ports
7. 2x USB Connectors
Miscellaneous
1. 1 AGP slot, 5 PCI slots and 1 ISA slot
2. Hardware monitoring
3. Keyboard/Mouse/Password and Hot Key multifunction Power
On.
4. Built-in Wake on LAN/Wake on Ring header
5. Built-in IrDA TX/RX header
5. One Thermal Sensor Cable Included |
